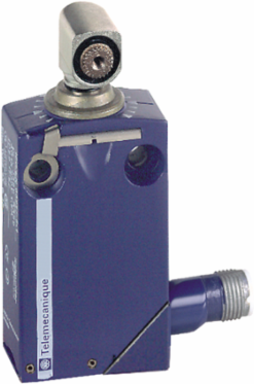

Telemecanique Sensors XCMD2101C12 Limit switch, Limit switches XC Standard, XCMD, with rotary head W/O operating lever, 1NC+1 NO, snap, M12
- MPN: XCMD2101C12
- PPN: TES-XCMD2101C12
- UNSPSC: 39122213
CAD
$201.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCMD, with rotary head W/O operating lever, 1NC+1 NO, snap, M12
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | rotary |
|---|---|
| Fixing Mode | by the body |
| Sensor Design | miniature |
| Head Material | zamak |
| Head Type | rotary head |
| Series Name | standard format |
| Body Type | plug-in body |
| Body Material | zamak |
| Number Of Poles | 2 |
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Type Of Operator | spring return without operating lever |
| Product Or Component Type | limit switch |
| Material | metal |
| Type Of Approach | lateral approach, 2 directions |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | XCMD |
Complementary
| Height | 50-50 mm |
|---|---|
| Electrical Connection | male connector M12, 5 pins |
| Net Weight | 0.11 kg |
| [Ui] Rated Insulation Voltage | 60 V 3)IEC 60947-5-1 |
| Positive Opening | with |
| [Ie] Rated Operational Current | 0.22 A 50 V, DC-13 EN/IEC 60947-5-1 appendix A || 3 A 50 V, AC-15 EN/IEC 60947-5-1 appendix A |
| Maximum Actuation Speed | 1.5 m/s |
| Depth | 16 mm |
| Short-Circuit Protection | 4 A cartridge fuse gG |
|---|---|
| [Ithe] Conventional Enclosed Thermal Current | 4 A |
| [Uimp] Rated Impulse Withstand Voltage | 0.8 kV IEC 60664 || 0.8 kV IEC 60947-1 |
| Electrical Durability | 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Contacts Insulation Form | Zb |
| Mechanical Durability | 10000000 cycles |
| Width | 30 mm |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
Environment
| Product Certifications | CSA || UL || CCC |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 25 gn 18 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529 |
| Electrical Shock Protection Class | class I IEC 61140 || class I NF C 20-030 |
| Ik Degree Of Protection | IK06 EN 62262 |
|---|---|
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-1 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110612EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI110612EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
