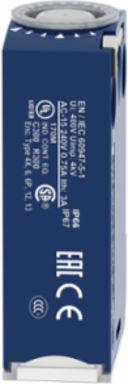

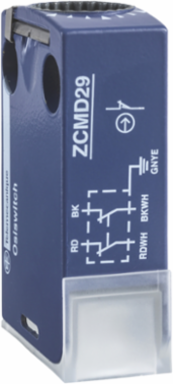

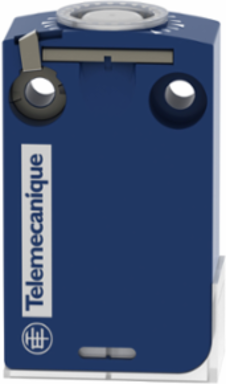

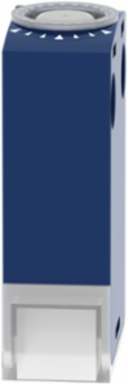

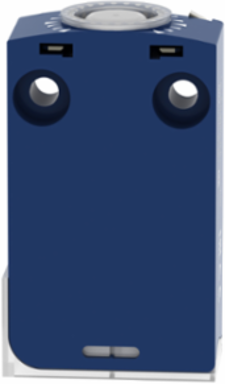

Telemecanique Sensors ZCMD41L2 Limit switch body, Limit switches XC Standard, ZCMD, 2NC+2 NO, silver, snap action, connection, 2 m

MPN: ZCMD41L2
PPN: TES-ZCMD41L2
UNSPSC: 39122213

$180.28

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 2 x NO + 2 x NC snap action contacts and is pre-cabled (2 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Telemecanique Limit switches XC Standard
Product Or Component Type	limit switch body
Series Name	standard format
Body Type	fixed
Body Material	zamak
Number Of Poles	4

Associated Head	ZCE29 \|\| ZCE08 \|\| ZCE10 \|\| ZCE07 \|\| ZCE01 \|\| ZCE28 \|\| ZCE02 \|\| ZCE65 \|\| ZCE27 \|\| ZCE64 \|\| ZCE62 \|\| ZCE67 \|\| ZCE14 \|\| ZCEG1 \|\| ZCEF0 \|\| ZCE66 \|\| ZCE06 \|\| ZCE11 \|\| ZCE21 \|\| ZCE09 \|\| ZCE24 \|\| ZCEF2 \|\| ZCE13 \|\| ZCE63
Design	miniature
Contacts Type And Composition	2 NC + 2 NO
Contact Operation	snap action
Device Short Name	ZCMD

Complementary

Height	50-50 mm
Minimum Actuation Speed	0.01 m/min
Contacts Material	silver plated contacts
Net Weight	0.065 kg
Electrical Durability	5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Opening	with
Wire Insulation Material	PvR
Width	30 mm
Product Compatibility	XCMD

Short-Circuit Protection	6 A cartridge fuse gG
Electrical Connection	fixed cable
Cable Length	2 m
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664 \|\| 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage	300 V 3)UL 508 \|\| 400 V 3)IEC 60947-5-1 \|\| 300 V 3)CSA C22.2 No 14
Contacts Insulation Form	Zb
Cable Composition	9 x 0.34 mm²
Depth	16 mm
Maximum Resistance Across Terminals	25 mOhm IEC 60255-7 category 3

Environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110612EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
