Telemecanique Sensors ZCMD25L2 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, slow break, connection, 2 m

MPN: ZCMD25L2
PPN: TES-ZCMD25L2

$131.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

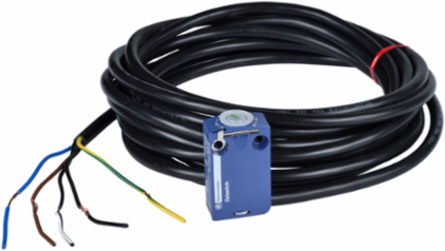

This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and is pre-cabled (2 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Documentation & Downloads

Specifications

Key Specifications

Series Name	standard format
Range Of Product	Telemecanique Limit switches XC Standard
Contact Operation	slow-break \|\| slow-break, break before make
Body Material	zamak
Design	miniature
Number Of Poles	2

Contacts Type And Composition	1 NC + 1 NO
Body Type	fixed
Associated Head	ZCE65 \|\| ZCE27 \|\| ZCE62 \|\| ZCE64 \|\| ZCE28 \|\| ZCEG1 \|\| ZCE11 \|\| ZCE67 \|\| ZCE01 \|\| ZCE10 \|\| ZCEF2 \|\| ZCE09 \|\| ZCE21 \|\| ZCE24 \|\| ZCE08 \|\| ZCE07 \|\| ZCE66 \|\| ZCE63 \|\| ZCE29 \|\| ZCEF0 \|\| ZCE13 \|\| ZCE02 \|\| ZCE14 \|\| ZCE06
Product Or Component Type	limit switch body
Device Short Name	ZCMD

Complementary

Height	50-50 mm
Short-Circuit Protection	6 A cartridge fuse gG
Positive Opening	with
Contacts Insulation Form	Zb
Contacts Material	silver plated contacts
Wire Insulation Material	PvR
Width	30 mm
Product Compatibility	XCMD
[Uimp] Rated Impulse Withstand Voltage	4 kV IEC 60664 \|\| 4 kV IEC 60947-1

Electrical Durability	5000000 cycles, DC-13 120 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C \|\| 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage	300 V 3)UL 508 \|\| 400 V 3)IEC 60947-5-1 \|\| 300 V 3)CSA C22.2 No 14
Minimum Actuation Speed	6 m/min
Electrical Connection	removable cable
Cable Length	2 m
Cable Composition	5 x 0.75 mm²
Depth	16 mm
Net Weight	0.065 kg
Maximum Resistance Across Terminals	25 mOhm IEC 60255-7 category 3

Environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Circularity Profile	ENVEOLI110612EN
Mercury Free	Yes
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
