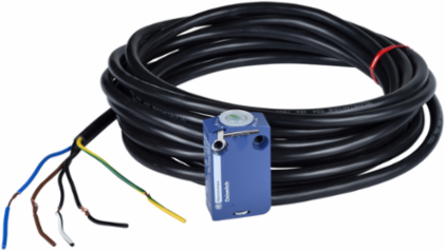

Telemecanique Sensors ZCMD25L1 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, slow break, connection, 1 m
- MPN: ZCMD25L1
- PPN: TES-ZCMD25L1
CAD
$123.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCM body/contact assembly with connector has standard contacts and a Zamak body. It has 1 x NO + 1 x NC break-before-make (slow break) contacts and is pre-cabled (1 meter cable). It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Contact Operation
- slow-break || slow-break, break before make
- Body Material
- zamak
- Design
- miniature
- Number Of Poles
- 2
Contacts Type And Composition1 NC + 1 NO
Body Typefixed
Associated HeadZCE11 || ZCE02 || ZCE24 || ZCE28 || ZCE62 || ZCEF2 || ZCE06 || ZCE27 || ZCE65 || ZCE64 || ZCE29 || ZCE67 || ZCEF0 || ZCE10 || ZCEG1 || ZCE09 || ZCE14 || ZCE66 || ZCE13 || ZCE01 || ZCE63 || ZCE21 || ZCE08 || ZCE07
Product Or Component Typelimit switch body
Device Short NameZCMD
Complementary
- Height
- 50-50 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Wire Insulation Material
- PvR
- Width
- 30 mm
- Product Compatibility
- XCMD
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Minimum Actuation Speed6 m/min
Electrical Connectionremovable cable
Cable Length1 m
Cable Composition5 x 0.75 mm²
Depth16 mm
Net Weight0.065 kg
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110612EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110612EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
