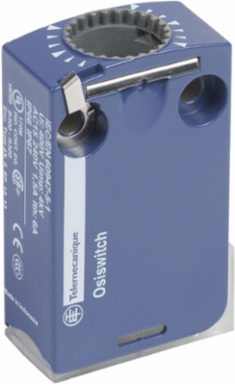

Telemecanique Sensors ZCMD37 Limit switch body, Limit switches XC Standard, ZCMD, 2NC+1 NO, silver, slow break
- MPN: ZCMD37
- PPN: TES-ZCMD37
- UNSPSC: 39122213
CAD
$143.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 3-pole body without cable, is part of the XCMD limit switches range. It is part of the variable composition offer. This body can be assembled with a wide range of heads/operators. Many compatible pre-cabled connection components are also available. Contacts: 2 NC + 1 NO, break before make, slow break.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- plug-in body
- Contact Operation
- slow-break, break before make
- Body Material
- zamak
- Design
- miniature
- Number Of Poles
- 3
Contacts Type And Composition2 NC + 1 NO
Range Of ProductTelemecanique Limit switches XC Standard
Associated HeadZCE65 || ZCE64 || ZCE10 || ZCE29 || ZCEH0 || ZCEH2 || ZCE01 || ZCE02 || ZCE63 || ZCE07 || ZCE21 || ZCEF0 || ZCE08 || ZCE24 || ZCE66 || ZCE13 || ZCE11 || ZCE28 || ZCE27 || ZCE14 || ZCE62 || ZCEG1 || ZCE05 || ZCE06 || ZCEF2 || ZCE67
Product Or Component Typelimit switch body
Device Short NameZCMD
Complementary
- Height
- 50-50 mm
- Short-Circuit Protection
- 6 A cartridge fuse gG
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contacts Material
- silver plated contacts
- Width
- 30 mm
- Depth
- 16 mm
- Net Weight
- 0.055 kg
- Maximum Resistance Across Terminals
- 25 mOhm IEC 60255-7 category 3
Electrical Durability5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14
Minimum Actuation Speed6 m/min
Electrical Connectionplug-in without pre-cabled connection
Contact Code DesignationR300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A || C300, AC-15 (Ue = 240 V), Ie = 0.75 A EN/IEC 60947-5-1 appendix A
Associated Connection ComponentZCMC37L1 || ZCMC37L2 || ZCMC37L5
Product CompatibilityXCMD
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60664 || 4 kV IEC 60947-1
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI110612EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Environmental DisclosureENVPEP110612EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
