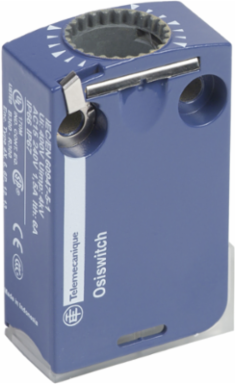

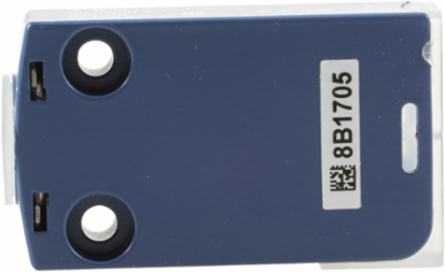

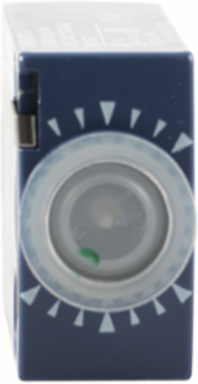

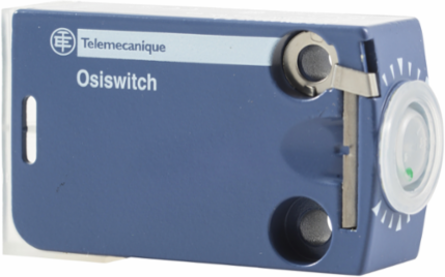

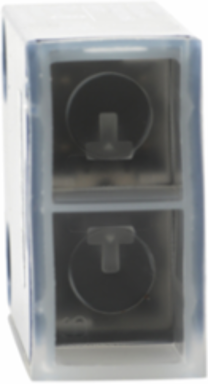

Telemecanique Sensors ZCMD21 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action
- MPN: ZCMD21
- PPN: TES-ZCMD21
- UNSPSC: 39122213
CAD
$92.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This ZCMD21 body is part of the range of limit switches XC Standard, miniature design, metal, XCMD. The variable composition range expands the offer and choice among different actuators. This body with 2-pole contact is equipped with contact block NC + NO snap action.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Product Or Component Type | limit switch body |
| Series Name | standard format |
| Body Type | plug-in body |
| Body Material | zamak |
| Number Of Poles | 2 |
| Associated Head | ZCE13 || ZCEF2 || ZCE63 || ZCE27 || ZCEH2 || ZCE21 || ZCE10 || ZCE01 || ZCE66 || ZCE64 || ZCE62 || ZCE02 || ZCEH0 || ZCEF0 || ZCE06 || ZCE09 || ZCE29 || ZCE05 || ZCE65 || ZCE67 || ZCE08 || ZCE07 || ZCE14 || ZCE11 || ZCE24 || ZCE28 || ZCEG1 |
|---|---|
| Design | miniature |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | snap action |
| Device Short Name | ZCMD |
Complementary
| Height | 50-50 mm |
|---|---|
| Minimum Actuation Speed | 0.01 m/min |
| Contacts Material | silver plated contacts |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A |
| Associated Connection Component | ZCMC21T2 || ZCMC21L10 || ZCMC21E3 || ZCMC21E7 || ZCMC21E5 || ZCMC21L7 || ZCMC21T5 || ZCMC21T1 || ZCMC21L3 || ZCMC21E1 || ZCMC21L1 || ZCMC21E2 || ZCMC21L5 || ZCMC21L2 || ZCMC21E10 |
| Product Compatibility | XCMD |
| Short-Circuit Protection | 6 A cartridge fuse gG |
|---|---|
| Electrical Connection | plug-in without pre-cabled connection |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 V 3)UL 508 || 400 V 3)IEC 60947-5-1 || 300 V 3)CSA C22.2 No 14 |
| Contacts Insulation Form | Zb |
| Width | 30 mm |
| Depth | 16 mm |
| Maximum Resistance Across Terminals | 25 mOhm IEC 60255-7 category 3 |
Environment
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110612EN |
| Toxic Heavy Metal Free | Yes |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI110612EN |
