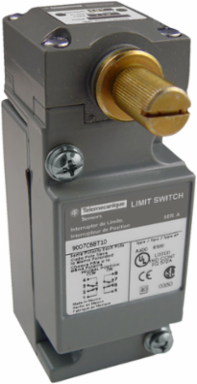

Telemecanique Sensors 9007C68T5M11 Limit switch, 9007, 9007C 2 NO/NC neutral, rotary head, CW+CCW, low differential
- MPN: 9007C68T5M11
- UPC: 785901142195
- PPN: TES-9007C68T5M11
- UNSPSC: 39122213
CAD
$393.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, 9007, 9007C 2 NO/NC neutral, rotary head, CW+CCW, low differential
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12), 1-2
- Cable Entry
- 1 entry for M20 x 1.5 mm BS 4568
- Material
- metal
- Head Type
- rotary head
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 2(NC-NO)
- Body Type
- plug-in
- Contact Operation
- snap action
- Device Short Name
- 9007C
Range Of Product9007
Fixing Modeby the body
Product Or Component Typelimit switch
Type Of Operatorzinc spring return without operating lever low differential)9007C lever
Switch Actuationfrom left and right || CW and CCW
Series Nameheavy duty
Sale Per Indivisible Quantity1
Positive Openingwithout
Product Specific Applicationstandard box
Number Of Poles2
Complementary
- Maximum Displacement Angle
- 90 °
- Terminals Description Iso N°1
- (7-8)NO || (3-4)NO || (1-2)NC || (5-6)NC
- Contacts Material
- silver contacts
- Contact Form
- Form Z
- Net Weight
- 1.25 lb(US)
- Function Available
- neutral position
- Short-Circuit Protection
- 10 A CC non-time delay
- Mechanical Durability
- 10000000 cycles
- Body Material
- zinc
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Depth
- 2.5 in
- Electrical Durability
- 1000000 cycles
Height4.02-4.02 in
Tripping Angle5 °
[Ithe] Conventional Enclosed Thermal Current10 A
Head Materialzinc
Local Signallingwithout
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA
Maximum Actuation Speed90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
Switch Function2 SPDT-DB
Width1.55 in
Minimum Torque For Tripping4 lbf.in
Repeat Accuracy+/- 0.002 in linear travel of cam
Environment
- Ambient Air Temperature For Operation
- -20-185 °F standard environment
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Protective Treatment
- epoxy powder coat
Shock Resistance60 gn 9 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 conforming to IEC 60529
Environmental Characteristicstandard environment
Electrical Shock Protection Classclass 0 IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
