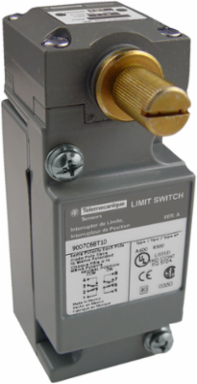

Telemecanique Sensors 9007C68T10M11 Limit switch, 9007, 9007C 2 NO/NC neutral, rotary head, CW+CCW, standard
Telemecanique Sensors 9007C68T10M11 Limit switch, 9007, 9007C 2 NO/NC neutral, rotary head, CW+CCW, standard
- MPN: 9007C68T10M11
- UPC: 785901288329
- PPN: TES-9007C68T10M11
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$375.12/ EA
Description
This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 NC and NO, 2 single pole double throw, double break, form Z, snap action contacts. It provides switch actuation of CCW to CW. The limit switch has a spring return without operating lever, supports lateral approach in 2 directions. The movement of operating head is rotary. It is a limit switch with a rated voltage of 600V AC and rated operating current of 10A. It is furnished with screw clamp terminals for electrical connection. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. This rotary head limit switch has a plug-in body, made of zinc. Its dimensions are 39.37mm (width) x 63.5mm (depth) x 102.11mm (height). It weighs 0.57kg. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-185 °F standard environment
- Vibration Resistance
- 25 gn 10-150 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -20-185 °F
- Nema Degree Of Protection
- NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
- Protective Treatment
- epoxy powder coat
Shock Resistance60 gn 9 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 IEC 60529
Environmental Characteristicstandard environment
Electrical Shock Protection Classclass 0 IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP111160EN
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Maximum Displacement Angle
- 90 °
- Terminals Description Iso N°1
- (7-8)NO || (3-4)NO || (5-6)NC || (1-2)NC
- Contacts Material
- silver contacts
- Contact Form
- Form Z
- Net Weight
- 1.25 lb(US)
- Function Available
- neutral position
- Short-Circuit Protection
- 10 A CC non-time delay
- Mechanical Durability
- 10000000 cycles
- Body Material
- zinc
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA
- Depth
- 2.5 in
- Electrical Durability
- 1000000 cycles
Height4.02-4.02 in
Tripping Angle10 °
[Ithe] Conventional Enclosed Thermal Current10 A
Head Materialzinc
Local Signallingwithout
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 V 3)CSA C22.2 No 14 contact block
[Ie] Rated Operational Current1.2 A 600 V AC, A600 NEMA || 0.11 A 250 V DC, R300 NEMA
Maximum Actuation Speed90 ft/min with 45° cam angle, levers only || 130 ft/min with 30° cam angle, levers only
Switch Function2 SPDT-DB
Width1.55 in
Minimum Torque For Tripping4 lbf.in
Repeat Accuracy+/- 0.002 in linear travel of cam
Specifications
- Movement Of Operating Head
- rotary
- Electrical Connection
- screw-clamp terminals AWG 22...AWG 12), 1-2
- Cable Entry
- 1 entry for M20 x 1.5 mm BS 4568
- Material
- metal
- Head Type
- rotary head
- Type Of Approach
- lateral approach, 2 directions
- Contacts Type And Composition
- 2(NC-NO)
- Body Type
- plug-in
- Contact Operation
- snap action
- Device Short Name
- 9007C
Range Of Product9007
Fixing Modeby the body
Product Or Component Typelimit switch
Type Of Operatorzinc spring return without operating lever -)9007C lever
Switch Actuationfrom left and right || CW and CCW
Series Nameheavy duty
Sale Per Indivisible Quantity1
Positive Openingwithout
Product Specific Applicationstandard box
Number Of Poles2
