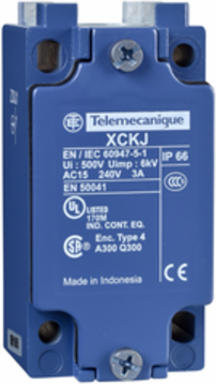

Telemecanique Sensors ZCKJ4 Limit switch body ZCKJ, fixed, without display, 2CO, snap action, Pg13 cable entry, Standard environment, terminals description ISO n°1 (11-12)NC (13-14)NO (21-22)NC (23-24)NO
- MPN: ZCKJ4
- PPN: TES-ZCKJ4
CAD
$166.30
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body ZCKJ, fixed, without display, 2CO, snap action, Pg13 cable entry, Standard environment, terminals description ISO n°1 (11-12)NC (13-14)NO (21-22)NC (23-24)NO
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm² |
|---|---|
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Positive opening | Without |
|---|---|
| Terminals description ISO n°1 | (11-12)NC (13-14)NO (21-22)NC (23-24)NO |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch body |
| Product compatibility | XCKJ |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland |
| Contact operation | Snap action |
| Series name | Standard format |
|---|---|
| Body type | Fixed |
| Body material | Metal |
| Contacts type and composition | 2 C/O |
| Contacts material | Silver plated contacts |
Environment
| IP degree of protection | IP66 |
|---|---|
| Environmental characteristic | Standard environment |
| IK degree of protection | IK07 |
|---|
