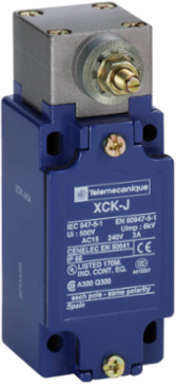

Telemecanique Sensors ZCKJ18 Limit switch body ZCKJ, fixed, without display, 1NC+1NO, snap action, Pg13 cable entry, terminals description ISO n°1 (13-14)NO (21-22)NC
- MPN: ZCKJ18
- PPN: TES-ZCKJ18
CAD
$122.28
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body ZCKJ, fixed, without display, 1NC+1NO, snap action, Pg13 cable entry, terminals description ISO n°1 (13-14)NO (21-22)NC
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
|---|---|
| Resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| Positive opening | With |
|---|---|
| Terminals description ISO n°1 | (13-14)NO (21-22)NC |
Main
| Range of product | Telemecanique Limit switches XC Standard |
|---|---|
| Product or component type | Limit switch body |
| Product compatibility | XCKJ |
| Cable entry | 1 entry tapped for Pg 13.5 cable gland |
| Contact operation | Snap action |
| Series name | Standard format |
|---|---|
| Body type | Fixed |
| Body material | Metal |
| Contacts type and composition | 1 NC + 1 NO |
| Contacts material | Gold plated contacts |
Environment
| IP degree of protection | IP66 |
|---|---|
| Environmental characteristic | Corrosive high temperature low temperature |
| IK degree of protection | IK07 |
|---|
