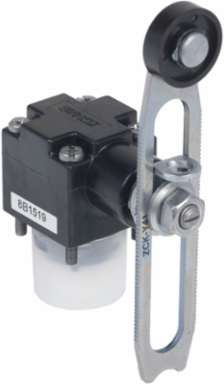

Telemecanique Sensors ZCKD41 Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever variable length
Telemecanique Sensors ZCKD41 Limit switch head, Limit switches XC Standard, ZCKD, thermoplastic roller lever variable length
- MPN: ZCKD41
- PPN: TES-ZCKD41
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$47.38/ EA
Description
This product is part of the XC Standard range, an offer of limit switches. This limit switch head provides switch actuation by 30° cam without positive opening operation. The thermoplastic spring return roller lever (adjustable variable length) supports lateral approach in 2 directions. The movement of operating head is rotary. It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKS, XCKL and XCKM limit switches. It is associated with ZCKSD35H29, ZCKM1H7, ZCKL1H7, ZCKS8, ZCKS9H29, ZCKSD31, ZCKS8H29, ZCKLD31H7, ZCKM6H29, ZCKS7H29, ZCKS7, ZCKLD37H7, ZCKM7H29, ZCKMD31H29, ZCKS2 and ZCKM6 heads. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Switch Actuation
- by 30° cam
- Head Material
- plastic
Positive Openingwithout
Specifications
- Type Of Approach
- lateral approach, 2 directions
- Movement Of Operating Head
- rotary
- Type Of Operator
- roller lever spring return thermoplastic adjustable variable length)
- Associated Body
- ZCKSD35H29 || ZCKM1H7 || ZCKL1H7 || ZCKS8 || ZCKS9H29 || ZCKSD31 || ZCKS8H29 || ZCKLD31H7 || ZCKM6H29 || ZCKS7H29 || ZCKS7 || ZCKLD37H7 || ZCKM7H29 || ZCKMD31H29 || ZCKS2 || ZCKM6 || ZCKS2H29 || ZCKM5H29 || ZCKMD37H29 || ZCKM9 || ZCKSD39 || ZCKL5 || ZCKMD31 || ZCKSD37H29 || ZCKM8H7 || ZCKMD39 || ZCKSD39H29 || ZCKL8H7 || ZCKL1 || ZCKM1 || ZCKSD31H29 || ZCKMD35H7 || ZCKS6 || ZCKMD37H7 || ZCKM7H7 || ZCKLD35 || ZCKMD31H7 || ZCKS9 || ZCKL6 || ZCKM8H29 || ZCKLD37 || ZCKM8 || ZCKM7 || ZCKS5H29 || ZCKS1H29 || ZCKL7H7 || ZCKL8 || ZCKS1 || ZCKMD39H29 || ZCKS5 || ZCKMD35H29 || ZCKL7 || ZCKS6H29 || ZCKLD31 || ZCKLD39H7 || ZCKL5H7 || ZCKLD39 || ZCKM5 || ZCKMD39H7 || ZCKSD37 || ZCKLD35H7 || ZCKMD37 || ZCKM1H29 || ZCKM5H7 || ZCKL6H7 || ZCKM9H29 || ZCKSD35 || ZCKM6H7 || ZCKMD35
- Device Short Name
- ZCKD
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKS || XCKL || XCKM
Head Typerotary head
