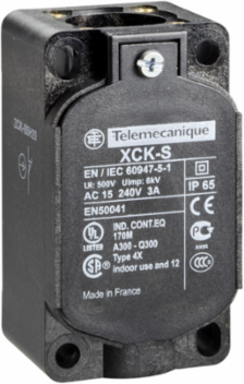

Telemecanique Sensors ZCKS7 Limit switch body, Limit switches XC Standard, ZCKS, 2NC, slow break, Pg13.5
- MPN: ZCKS7
- PPN: TES-ZCKS7
CAD
$91.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This body, with a 2-pole contact block, is a separate part for the XCKS limit switches. Contacts: 2 NC, simultaneous, slow break. It is a plastic, double insulated body, in EN 50041 format, with 1 Pg 13.5 cable entry.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Associated Head | ZCKD08 || ZCKD01 || ZCKD31 || ZCKD81 || ZCKD05 || ZCKD59 || ZCKD54 || ZCKD029 || ZCKD49 || ZCKD02 || ZCKD55 || ZCKD33 || ZCKD06 || ZCKD91 || ZCKD39 || ZCKD34 || ZCKD019 || ZCKD41 |
| Product Or Component Type | limit switch body |
| Series Name | standard format |
| Body Type | fixed |
| Body Material | plastic |
| Device Short Name | ZCKS |
| Contacts Material | silver plated contacts |
|---|---|
| Cable Entry | 1 entry tapped for Pg 13.5 cable gland |
| Number Of Steps | 1 1 position |
| Contacts Type And Composition | 2 NC |
| Contact Operation | slow-break, simultaneous |
| Product Compatibility | XCKS |
| Number Of Poles | 2 |
Complementary
| Height | 73-73 mm |
|---|---|
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Local Display | without |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60664 || 4 kV IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| Depth | 36 mm |
| Terminals Description Iso N°1 | (13-14)NO || (31-32)NC || (21-22)NC |
|---|---|
| Minimum Actuation Speed | 6 m/min |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Net Weight | 0.08 kg |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Positive Opening | with |
| Width | 40 mm |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
Environment
| Ambient Air Temperature For Operation | -25-70 °C standard environment |
|---|---|
| Ambient Air Temperature For Storage | -40-70 °C |
| Ip Degree Of Protection | IP65 |
| Ik Degree Of Protection | IK03 |
|---|---|
| Environmental Characteristic | standard environment |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1307066 |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI1307066EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Free Of Svhc | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
