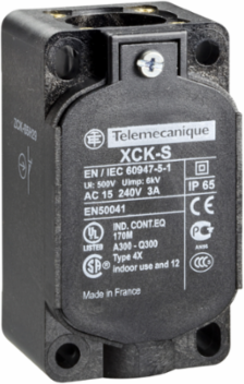

Telemecanique Sensors ZCKSD39 Limit switch body, Limit switches XC Standard, ZCKS, 2NC+1 NO, snap action, Pg13.5
- MPN: ZCKSD39
- PPN: TES-ZCKSD39
CAD
$114.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Limit switch body, Limit switches XC Standard, ZCKS, 2NC+1 NO, snap action, Pg13.5
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- fixed
- Contact Operation
- snap action
- Associated Head
- ZCKD029 || ZCKD55 || ZCKD01 || ZCKD05 || ZCKD31 || ZCKD49 || ZCKD08 || ZCKD02 || ZCKD019 || ZCKD59 || ZCKD81 || ZCKD06 || ZCKD39 || ZCKD41 || ZCKD34 || ZCKD33 || ZCKD91 || ZCKD54
- Cable Entry
- 1 entry tapped for Pg 13.5 cable gland
- Product Compatibility
- XCKS
- Device Short Name
- ZCKS
Contacts Type And Composition2 NC + 1 NO
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Body Materialplastic
Product Or Component Typelimit switch body
Number Of Steps1 1 position
Number Of Poles3
Complementary
- Height
- 73-73 mm
- Terminals Description Iso N°1
- (31-32)NC || (13-14)NO || (21-22)NC
- [Ui] Rated Insulation Voltage
- 400 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
- Width
- 40 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection6 A cartridge fuse gG
Positive Openingwith
[Ie] Rated Operational Current1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 appendix A || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current6 A
Depth36 mm
Net Weight0.08 kg
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ip Degree Of Protection
- IP65
Environmental Characteristicstandard environment
Ik Degree Of ProtectionIK03
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Circularity Profile
- ENVEOLI1307066EN
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1307066
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
