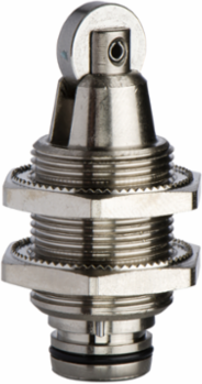

Telemecanique Sensors ZCEH2 Limit switch head, Limit switches XC Standard, ZCE, M18 steel roller plunger
- MPN: ZCEH2
- PPN: TES-ZCEH2
- UNSPSC: 39122213
CAD
$98.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The ZC limit switch head is a part of the OsiSense XC product range of limit switches. The head is an M18 plunger head and has a roller plunger spring return operation and linear movement of the operating head. The head is compatible with XCMD, XCKD, XCKT, and XCKP limit switches and has multiple associated limit switch bodies. The spring return metal roller plunger supports the lateral approach in 2 directions. It is suitable for the specific applications such as hoisting, mining, minerals and metals or belt conveying. It is compatible with XCMD, XCKD, XCKT and XCKP limit switches. The associated bodies are ZCP31, ZCT25P16, ZCT28P16, ZCD35, ZCP29, ZCT25N12, ZCP39, ZCD27 and ZCD39. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | linear |
| Type Of Operator | roller plunger spring return metal |
| Associated Body | ZCP31 || ZCT25P16 || ZCT28P16 || ZCD35 || ZCP21 || ZCT27N12 || ZCD26 || ZCP28 || ZCT26P16 || ZCP27 || ZCP37 || ZCT27G11 || ZCD31 || ZCT28G11 || ZCP25 || ZCT21N12 || ZCD21 || ZCT21G11 || ZCD29M12 || ZCT26G11 || ZCP21M12 || ZCD25 || ZCD37 || ZCD29 || ZCT25G11 || ZCD28 || ZCT28N12 || ZCT26N12 || ZCP29 || ZCD21M12 || ZCT21P16 || ZCP35 || ZCT27P16 || ZCP29M12 || ZCT25N12 || ZCP39 || ZCD27 || ZCD39 || ZCP26 |
| Device Short Name | ZCE |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCMD || XCKD || XCKT || XCKP |
| Head Type | M18 plunger head |
Complementary
| Switch Actuation | by 30° cam |
|---|
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
