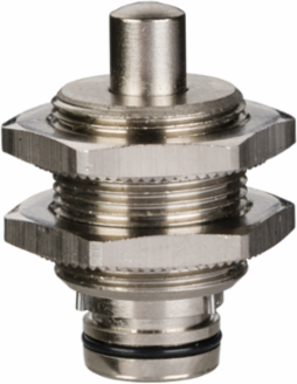

Telemecanique Sensors ZCEH0 Limit switch head, Limit switches XC Standard, ZCE, M18 metal end plunger
- MPN: ZCEH0
- PPN: TES-ZCEH0
- UNSPSC: 39122213
CAD
$34.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZCE, M18 metal end plunger
Documentation & Downloads
Specifications
Key Specifications
- Type Of Approach
- vertical approach, 1 direction
- Movement Of Operating Head
- linear
- Type Of Operator
- end plunger spring return metal
- Associated Body
- ZCP21M12 || ZCP21 || ZCD37 || ZCP26 || ZCT28N12 || ZCP29 || ZCP39 || ZCT25N12 || ZCT27P16 || ZCT28P16 || ZCP29M12 || ZCT25G11 || ZCD39 || ZCP25 || ZCP35 || ZCT26P16 || ZCD26 || ZCD21M12 || ZCT25P16 || ZCT26G11 || ZCP28 || ZCP27 || ZCT21N12 || ZCD25 || ZCP37 || ZCD21 || ZCT26N12 || ZCT27N12 || ZCT28G11 || ZCT21G11 || ZCD31 || ZCT21P16 || ZCD28 || ZCD29M12 || ZCP31 || ZCD29 || ZCT27G11 || ZCD35 || ZCD27
- Device Short Name
- ZCE
Series Namestandard format
Range Of ProductTelemecanique Limit switches XC Standard
Product Or Component Typelimit switch head
Product CompatibilityXCKT || XCMD || XCKP || XCKD
Head TypeM18 plunger head
Complementary
- Positive Opening
- with
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Environmental Characteristic
- standard environment
Ambient Air Temperature For Storage-40-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
