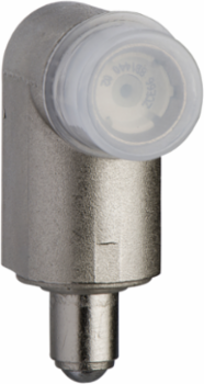

Telemecanique Sensors ZCE66 Limit switch head, Limit switches XC Standard, ZCE, side steel ball bearing plunger

MPN: ZCE66
PPN: TES-ZCE66
UNSPSC: 39122213

$63.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Limit switch head, Limit switches XC Standard, ZCE, side steel ball bearing plunger

Documentation & Downloads

Specifications

Key Specifications

Type Of Approach	multi-directional approach
Movement Of Operating Head	linear
Type Of Operator	side ball bearing plunger spring return metal
Associated Body	ZCMD37L2 \|\| ZCP37 \|\| ZCT26N12 \|\| ZCT28G11 \|\| ZCT27P16 \|\| ZCD25 \|\| ZCMD81L2 \|\| ZCD35 \|\| ZCP29 \|\| ZCMD21L08U78 \|\| ZCP29M12 \|\| ZCMD37L5 \|\| ZCD29M12 \|\| ZCD31 \|\| ZCP25 \|\| ZCMD39L2 \|\| ZCMD21L5 \|\| ZCD27 \|\| ZCMD69C12 \|\| ZCMD41L1 \|\| ZCMD25L5 \|\| ZCP26 \|\| ZCT26G11 \|\| ZCD28 \|\| ZCMD81L5 \|\| ZCMD29L5 \|\| ZCT25P16 \|\| ZCMD21C12 \|\| ZCT28N12 \|\| ZCP35 \|\| ZCT21G11 \|\| ZCMD29L1 \|\| ZCD39 \|\| ZCMD37L1 \|\| ZCT21N12 \|\| ZCMD25L2 \|\| ZCMD29L2 \|\| ZCP39 \|\| ZCD26 \|\| ZCP28 \|\| ZCD21M12 \|\| ZCMD61M12 \|\| ZCP21M12 \|\| ZCMD41L5 \|\| ZCT21P16 \|\| ZCT28P16 \|\| ZCD37 \|\| ZCMD81L1 \|\| ZCMD21L2 \|\| ZCP31 \|\| ZCD29 \|\| ZCP21 \|\| ZCMD39L1 \|\| ZCMD29C12 \|\| ZCT27N12 \|\| ZCMD39L5 \|\| ZCMD21L08R12 \|\| ZCT27G11 \|\| ZCMD41L2 \|\| ZCT26P16 \|\| ZCMD21M12 \|\| ZCT25N12 \|\| ZCMD25L1 \|\| ZCD21 \|\| ZCMD61C12 \|\| ZCP27 \|\| ZCT25G11 \|\| ZCMD21L1
Device Short Name	ZCE

Series Name	standard format
Range Of Product	Telemecanique Limit switches XC Standard
Product Or Component Type	limit switch head
Product Compatibility	XCKD \|\| XCKT \|\| XCKP \|\| XCMD
Head Type	plunger head

Complementary

Switch Actuation	by 30° cam

Positive Opening	without

Environment

Ambient Air Temperature For Operation	-25-70 °C
Environmental Characteristic	standard environment

Ambient Air Temperature For Storage	-40-70 °C

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110614EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
