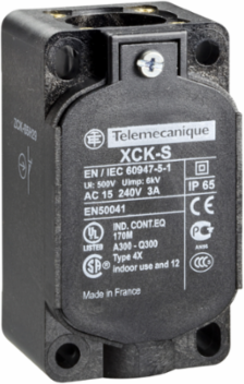

Telemecanique Sensors ZCKS1 Limit switch body, Limit switches XC Standard, ZCKS, 1NC+1 NO, snap action, Pg13.5
Telemecanique Sensors ZCKS1 Limit switch body, Limit switches XC Standard, ZCKS, 1NC+1 NO, snap action, Pg13.5
- MPN: ZCKS1
- PPN: TES-ZCKS1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$77.28/ EA
Description
This ZCKS1 body is part of the range of limit switches XC Standard, format EN 50041, plastic double isolated XCKS. The variable composition range expands the offer up to 4 contacts and choice among 18 different actuators. This body with 2-pole contact is equipped with contact block NC + NO snap action and a cable entry Pg 13.5.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C standard environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65
Ik Degree Of ProtectionIK03
Environmental Characteristicstandard environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307066
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1307066EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 73-73 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 1.5 mm²
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
- Depth
- 36 mm
Terminals Description Iso N°1(13-14)NO || (21-22)NC
Minimum Actuation Speed0.01 m/min
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.08 kg
Electrical Durability5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Positive Openingwith
Width40 mm
Maximum Resistance Across Terminals0.25 mOhm IEC 60255-7 category 3
Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Associated Head
- ZCKD55 || ZCKD08 || ZCKD59 || ZCKD029 || ZCKD33 || ZCKD34 || ZCKD49 || ZCKD01 || ZCKD31 || ZCKD019 || ZCKD39 || ZCKD81 || ZCKD91 || ZCKD05 || ZCKD02 || ZCKD41 || ZCKD54 || ZCKD06
- Product Or Component Type
- limit switch body
- Series Name
- standard format
- Body Type
- fixed
- Body Material
- plastic
- Device Short Name
- ZCKS
Contacts Materialsilver plated contacts
Cable Entry1 entry tapped for Pg 13.5 cable gland
Number Of Steps1 1 position
Contacts Type And Composition1 NC + 1 NO
Contact Operationsnap action
Product CompatibilityXCKS
Number Of Poles2
