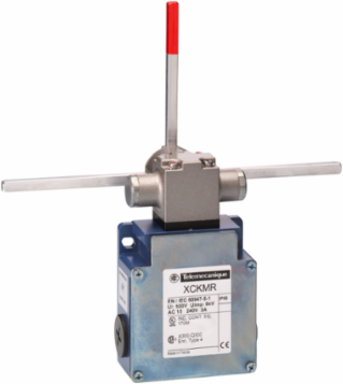

Telemecanique Sensors XCKMR54D2 Limit switch, Limit switches XC Standard, XCKMR, reverse head stay put crossed rods, 2x(2 NC), slow, Pg13
- MPN: XCKMR54D2
- PPN: TES-XCKMR54D2
- UNSPSC: 39122213
CAD
$454.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKMR, reverse head stay put crossed rods, 2x(2 NC), slow, Pg13
Documentation & Downloads
Specifications
Key Specifications
| Movement Of Operating Head | rotary |
|---|---|
| Fixing Mode | by the body |
| Cable Entry | 3 entries tapped for Pg 13.5 cable gland 9-12 mm |
| Head Material | zamak |
| Head Type | reversed rotary head |
| Series Name | special format |
| Body Type | fixed |
| Product Specific Application | for hoisting and mechanical handling applications |
| Device Short Name | XCKMR |
| Range Of Product | OsiSense XC |
|---|---|
| Type Of Operator | stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Product Or Component Type | limit switch |
| Material | metal |
| Type Of Approach | lateral approach, 2 directions |
| Contacts Type And Composition | 2 x (2 NC) |
| Contact Operation | slow-break, staggered |
| Body Material | zamak |
| Number Of Poles | 4 |
Complementary
| Maximum Displacement Angle | -180 ° || 180 ° |
|---|---|
| Terminals Description Iso N°1 | (21-22)NC || (11-12)NC |
| Minimum Actuation Speed | 6 m/min |
| Number Of Steps | 5 electrical positions |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV EN/IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 300 VCSA C22.2 No 14 || 500 V 3)EN/IEC 60947-1 |
| Contacts Insulation Form | Zb |
| Positive Opening Minimum Torque | 0.75 N.m |
| Maximum Actuation Speed | 1.5 m/s actuation point on the rod between 65 and 95 mm |
| Width | 200 mm |
| Minimum Torque For Tripping | 0.5 N.m |
| Height | 118-118 mm |
|---|---|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Net Weight | 0.55 kg |
| Switch Actuation | by any moving part |
| Positive Opening | with |
| Contact Block Per Direction [Control Circuit] | 1 per direction |
| Mechanical Durability | 2000000 cycles |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q150, DC-13 (Ue = 125 V), Ie = 0.55 A EN/IEC 60947-5-1 appendix A |
| Depth | 59 mm |
| Maximum Resistance Across Terminals | 25 MOhm IEC 60255-7 category 3 |
Environment
| Product Certifications | UL || CSA || CCC || CE |
|---|---|
| Ambient Air Temperature For Operation | -25-70 °C |
| Shock Resistance | 50 gn EN/IEC 60068-2-27 |
| Ip Degree Of Protection | IP66 EN/IEC 60529 |
| Electrical Shock Protection Class | class I IEC 60536 |
| Ik Degree Of Protection | IK07 EN 50102 |
|---|---|
| Standards | CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 |
| Vibration Resistance | 25 gn 10-500 Hz)EN/IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-85 °C |
| Protective Treatment | TC |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
