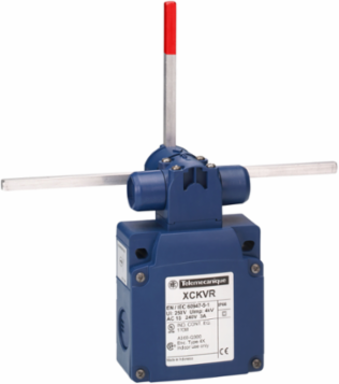

Telemecanique Sensors XCKVR54D2H29 Limit switch XCKVR, reverse head, stay-put crossed rods, 2NC+2NC, M20 cable entry, 5 electric / 4 mechanical positions
- MPN: XCKVR54D2H29
- PPN: TES-XCKVR54D2H29
CAD
$592.18
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch XCKVR, reverse head, stay-put crossed rods, 2NC+2NC, M20 cable entry, 5 electric / 4 mechanical positions
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Switch actuation | By any moving part |
|---|---|
| Contacts insulation form | Zb |
| Positive opening | With |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
|---|---|
| Contact block per direction [control circuit] | 1 per direction |
| Contact code designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A |
| Terminals description ISO n°1 | (11-12)NC (21-22)NC |
Main
| Range of product | OsiSense XC |
|---|---|
| Product or component type | Limit switch |
| Device short name | XCKMR |
| Head type | Reversed rotary head |
| Body material | (PBT+PC)-GF30 FR |
| Fixing mode | By the body |
| Type of operator | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Cable entry | 1 entry tapped and 2 breakout holes for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm |
| Contact operation | Slow-break, staggered |
| Series name | Special format |
|---|---|
| Product specific application | For hoisting and mechanical handling applications |
| Body type | Fixed |
| Material | Plastic |
| Head material | (PBT+PC)-GF30 FR |
| Movement of operating head | Rotary |
| Type of approach | Lateral approach, 2 directions |
| Contacts type and composition | 2 x (2 NC) |
Environment
| Shock resistance | 50 gn conforming to IEC 60068-2-27 |
|---|---|
| IP degree of protection | IP65 conforming to IEC 60529 |
| Electrical shock protection class | Class II conforming to IEC 60536 |
| Product certifications | CCC CE CSA UL |
| Vibration resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IK degree of protection | IK04 conforming to IEC 62262 |
| Protective treatment | TC |
| Standards | CSA C22.2 No 14 IEC 60947-5-1 UL 508 |
