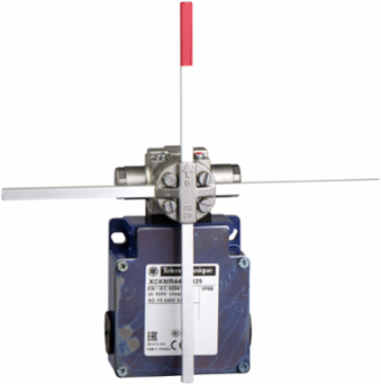

Telemecanique Sensors XCKMR44D2H29 Limit switch, Limit switches XC Standard, XCKMR, reverse head stay put crossed rods, 2x(NC+NO), slow, M20
- MPN: XCKMR44D2H29
- PPN: TES-XCKMR44D2H29
- UNSPSC: 39122213
CAD
$897.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch, Limit switches XC Standard, XCKMR, reverse head stay put crossed rods, 2x(NC+NO), slow, M20
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- rotary
- Fixing Mode
- by the body
- Cable Entry
- 3 entries tapped for M20 x 1.5 cable gland 7-13 mm
- Head Material
- zamak
- Head Type
- reversed rotary head
- Series Name
- special format
- Body Type
- fixed
- Product Specific Application
- for hoisting and mechanical handling applications
- Device Short Name
- XCKMR
Range Of ProductOsiSense XC
Type Of Operatorstay put crossed rods lever metal square rod 6 mm, L = 200 mm
Product Or Component Typelimit switch
Materialmetal
Type Of Approachlateral approach, 2 directions
Contacts Type And Composition2 x (1 NC + 1 NO)
Contact Operationslow-break, break before make
Body Materialzamak
Number Of Poles4
Complementary
- Maximum Displacement Angle
- -180 ° || 180 °
- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Minimum Actuation Speed
- 6 m/min
- Number Of Steps
- 4 electrical positions
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 300 VCSA C22.2 No 14 || 500 V 3)EN/IEC 60947-1
- Contacts Insulation Form
- Zb
- Mechanical Durability
- 2000000 cycles
- Contact Code Designation
- A300, AC-15 (Ue = 240 V), Ie = 3 A 10 A EN/IEC 60947-5-1 appendix A || Q150, DC-13 (Ue = 125 V), Ie = 0.55 A EN/IEC 60947-5-1 appendix A
- Depth
- 59 mm
- Maximum Resistance Across Terminals
- 25 MOhm IEC 60255-7 category 3
Height118-118 mm
Short-Circuit Protection10 A cartridge fuse gG
Electrical Connectionscrew-clamp terminals 1 x 0.5...2 x 2.5 mm²
Net Weight0.55 kg
Switch Actuationby any moving part
Positive Openingwithout
Contact Block Per Direction [Control Circuit]2 per direction
Maximum Actuation Speed1.5 m/s actuation point on the rod between 65 and 95 mm
Width200 mm
Minimum Torque For Tripping0.5 N.m
Environment
- Product Certifications
- CCC || CSA || CE || UL
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 50 gn EN/IEC 60068-2-27
- Ip Degree Of Protection
- IP66 EN/IEC 60529
- Electrical Shock Protection Class
- class I IEC 60536
Ik Degree Of ProtectionIK07 EN 50102
StandardsUL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1
Vibration Resistance25 gn 10-500 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-40-85 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
