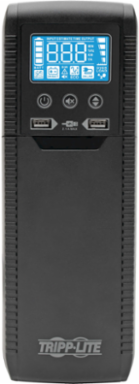

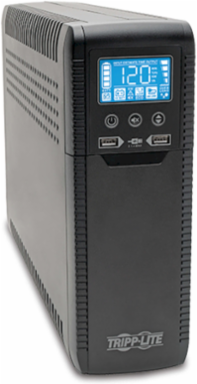

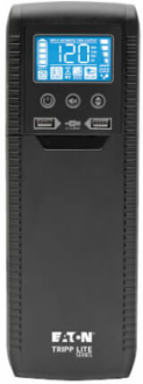

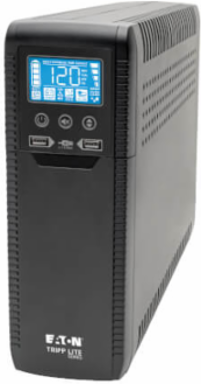

Tripp Lite ECO1500LCD Energy-Saving Line-Interactive UPS, 1440VA, 900W, 10 Outlets, USB
- MPN: ECO1500LCD
- UPC: 037332205162
- PPN: TRP-ECO1500LCD
CAD
$523.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Line Interactive UPS with USB and 10 Outlets - 120V, 1440VA, 900W, 50/60 Hz, AVR, ECO Series, ENERGY STAR
Features

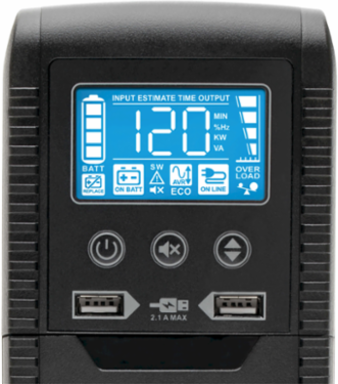

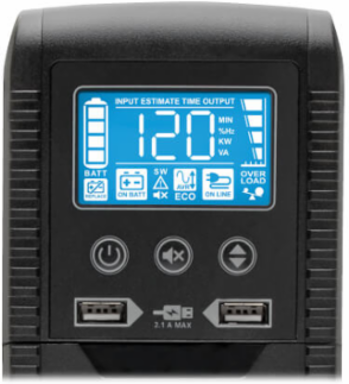

- LCD screen displays input/output voltage, frequency, load (VA and watts), battery charge level, estimated runtime, and operating mode
- Automatic voltage regulation (AVR) maintains line power operation during brownouts as low as 86V (60Hz) / 105V (50Hz)
- Power-saving auto-shutoff ECO outlets
- Audible alarm for low battery, fault, overload, and replace battery conditions
- USB cable included
Documentation & Downloads
Specifications
Additional
- Voltage
- 120V AC
- Output Volt-Amp Capacity
- 1440 VA (1.44 kVA)
- Frequency
- 50/60 Hz, automatic frequency selection

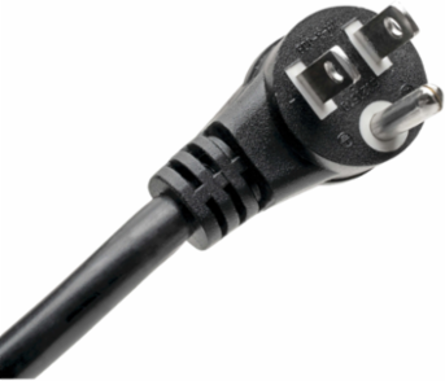

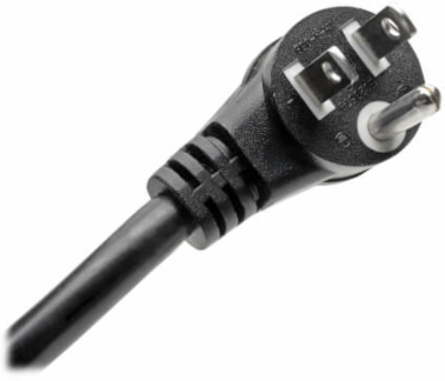

- Input Cord Length
- 6 ft
- Output Voltage Regulation (Line Mode)
- 120V (+18% / -13%)
- Output AC Waveform (AC Mode)
- Sine wave

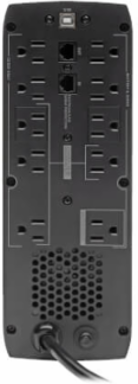

- Output Receptacles

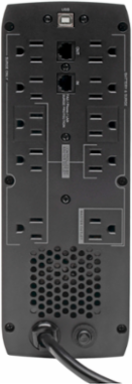

- 10 x 5-15R (5 battery backup, 5 surge-only)
- Half Load Runtime
- 12 min (450 W)
- Battery Recharge Rate
- 7 hours (10% to 90%)
- Voltage Regulation
- Automatic Voltage Regulation (AVR) maintains line power operation during brownouts as low as 86V (60Hz) / 105V (50Hz)
- Surge Suppression Rating
- 316 Joules
- EMI / RFI Noise Suppression
- Yes
- Form Factor
- Tower
- Weight
- 26.44 lbs (11.99 kg)
- Storage Temperature Range
- 5 to 122 F (-15 to 50 C)
- AC Mode BTU/Hr (Full Load)
- 81
- Communication Interface
- USB (HID enabled), includes USB cable
- Low Voltage Transfer to Battery Power
- 86V (60Hz) / 105V (50Hz)
- Cold Start
- Yes
- Compliance
- ENERGY STAR, UL1778, CSA, FCC, NOM; UL1778:2014 5th Edition; CAN/CSA-C22.2 NO. 107.3:2014 3rd Edition
Amperage12A
Output Watt Capacity900 W
Input Circuit Breaker15A
Input PhaseSingle-Phase
Output Voltage Regulation (Battery Mode)120V ( 10%)
Output AC Waveform (Battery Mode)PWM sine wave
Full Load Runtime3 min (900 W)
DC System Voltage24 VDC
Internal Replacement Battery Cartridge2 x RBC51
Undervoltage CorrectionBoost input 23% (86-105V, 60Hz only)
UPS Data Line Surge Suppression1 line TEL/DSL; 10/100Base-T Ethernet
Cooling MethodFan
Dimensions11 x 3.9 x 16.14 in (279 x 99 x 410 mm)
Operating Temperature Range32 to 104 F (0 to 40 C)
Relative HumidityUp to 95%, non-condensing
AC Mode Efficiency (100% Load)97%
Transfer Time6 milliseconds
High Voltage Transfer to Battery Power142V
Green Energy-Saving Feature>95% efficiency, auto-shutoff ECO outlets
UPS Housing MaterialABS
