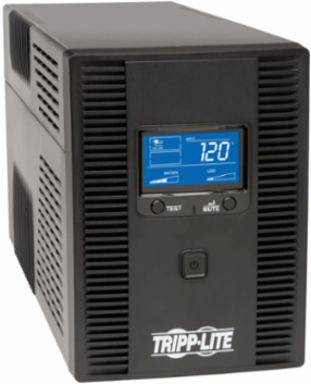

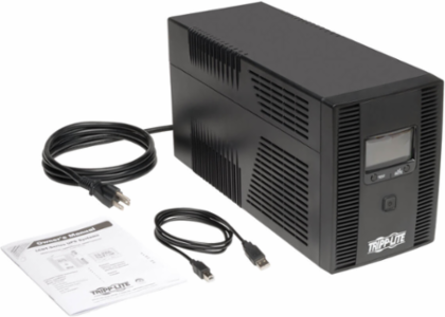

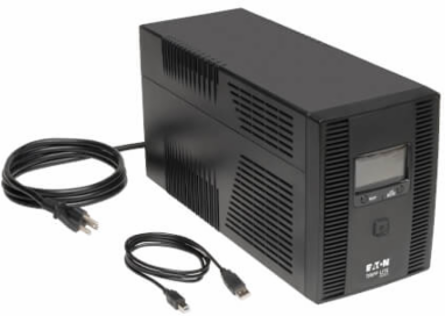

Tripp Lite SMART1300LCDT SmartPro LCD 120V 1300VA 720W Line-Interactive UPS, AVR, Tower, LCD, USB, 8 Outlets
Tripp Lite SMART1300LCDT SmartPro LCD 120V 1300VA 720W Line-Interactive UPS, AVR, Tower, LCD, USB, 8 Outlets
- MPN: SMART1300LCDT
- UPC: 037332174116
- PPN: TRP-SMART1300LCDT
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$526.61/ EA
Description
Provides reliable 1300VA/720W power protection for your desktop computer, network workstation, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts.
Features
- Supports a basic desktop PC up to 64 min. during power outage

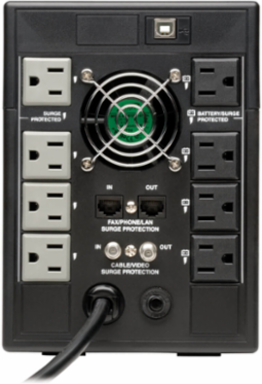

- Features 8 protected outlets—4 battery-protected, 4 surge-only
- Offers automatic voltage regulation (AVR)
- LCD screen reports real-time UPS and power status
- Plugs into any NEMA 5-15R socket
- 3-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 650
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet; Coax jacks (1 set)
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Half Load Runtime (min.)
- 10 minutes (360 watts)
- Battery Recharge Rate (Included Batteries)
- Less than 6.3 hours from 10% to 90%
- Expandable Runtime
- No
DC System Voltage (VDC)24
Internal UPS Replacement Battery CartridgeRBC51 (requires 2)
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Physical
- Cooling Method
- Fan
- Primary UPS Depth (mm)
- 396
- Primary UPS Width (mm)
- 146
- Shipping Weight (lbs.)
- 24.70
- UPS Power Module Weight (kg)
- 9.39

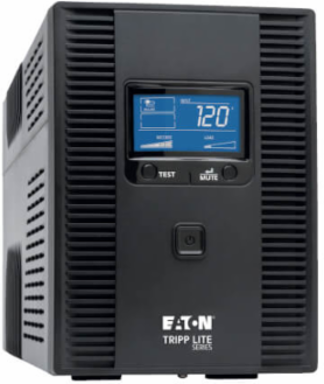

Primary Form FactorTower
Primary UPS Height (mm)203
Shipping Dimensions (hwd / in.)11.30 x 9.10 x 19.40
UPS Power Module Dimensions (hwd, in.)8 x 5.75 x 15.6
UPS Power Module Weight (lbs.)20.7
User Interface, Alerts & Controls

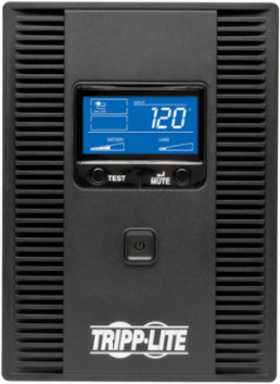

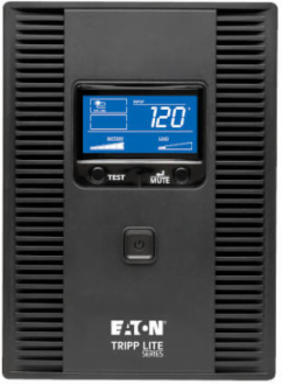

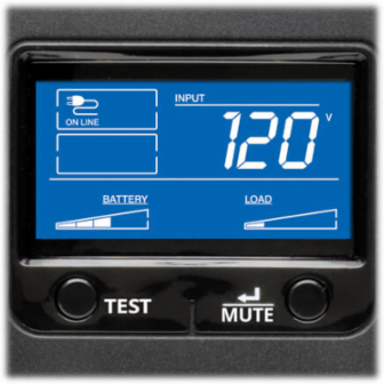

- Front Panel LCD Display

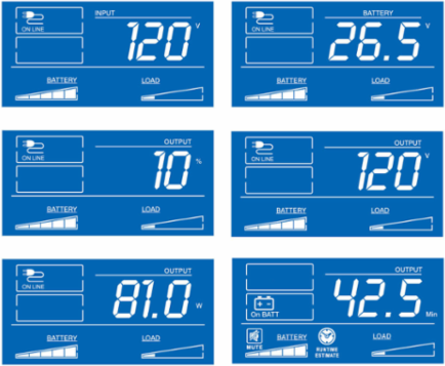

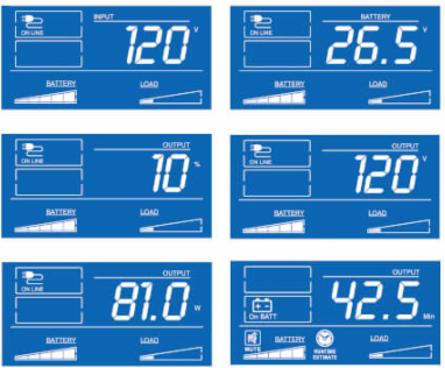

- LCD screen with scroll buttons indicates Input voltage, Output voltage, Frequency (Hz), AVR boost / cut status, Output load in watts, Output load percentage, Battery voltage and Estimated runtime in minutes
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch
SwitchesPower switch offers whole UPS power control; Scroll/mute button enables LCD selection options and silences audible alarm; Test button initiates self test
Audible AlarmAudible alarm indicates power-failure and low-battery conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 92 to 150
- Undervoltage Correction
- Input voltages between 92 and 108 are boosted by 18%
Overvoltage CorrectionInput voltages between 129 and 150 are reduced by 15%
Input
- Rated input current (Maximum Load)
- 10.8A

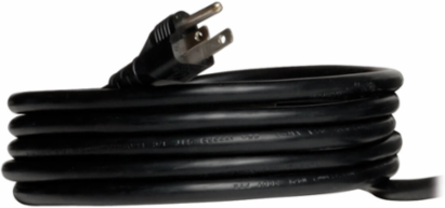

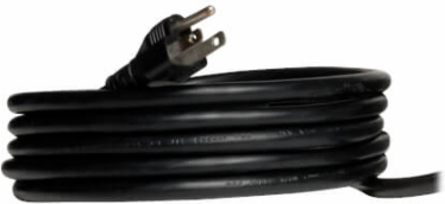

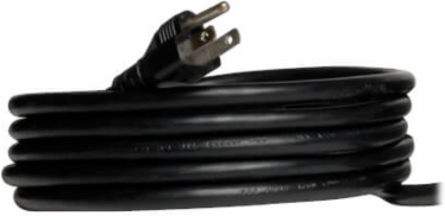

- UPS Input Connection Type
- 5-15P
- UPS Input Cord Length (ft.)
- 6
- Input Phase
- Single-Phase
Nominal Input Voltage(s) Supported120V AC
Input Circuit Breakers20A
Recommended Electrical Service15A 120V
Output
- Output Volt Amp Capacity (VA)
- 1300
- Output Watt Capacity (Watts)
- 720
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- 120V (±10%)
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- No
Output kVA Capacity (kVA)1.3
Nominal Voltage Details120v nominal output in battery mode
Output Voltage Regulation (Line Mode)120V (+9% / -12%)

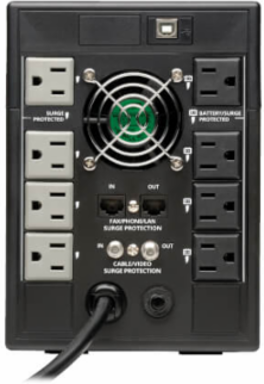

UPS Output Receptacles (Surge Suppression Only)4 UPS outlets, 4 surge-only outlets
Output AC Waveform (Battery Mode)PWM sine wave
Output Receptacles(8) 5-15R
Communications
- Network Monitoring Port Description
- Supports detailed monitoring of UPS and site power conditions
- Communications Cable
- USB cabling included
- Communications Interface
- USB (HID enabled)
PowerAlert SoftwareFor local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 5 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 776
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)100
AC Mode Efficiency Rating (100% Load)95%
Overview
- UPC Code
- 037332174116
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS
High Availability UPS FeaturesHot swappable batteries
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 2 milliseconds (AC to battery mode), 6 milliseconds (battery to AC mode)
- High Voltage Transfer to Battery Power (Setpoint)
- 150
Low Voltage Transfer to Battery Power (Setpoint)92
