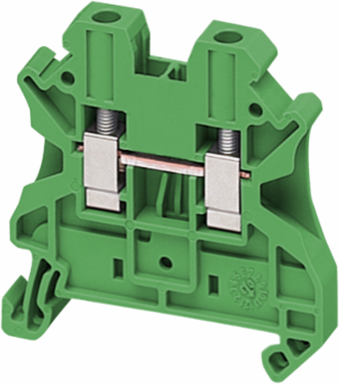

Schneider Electric NSYTRV42GN Linergy TR Terminal Block, 4 mm², 2 Points, 1000 V, Set of 10
- MPN: NSYTRV42GN
- PPN: SCH-NSYTRV42GN
CAD
$3.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Manufactured by Schneider Electric, this set of Linergy TR Terminal Blocks is designed for high-performance applications, featuring terminals rated for 1000 V and accommodating 4 mm² conductors. With two connection points per block, these terminal blocks ensure secure and efficient electrical connections, making them a vital component in automation and control systems. Ideal for panel builders and engineers, the reliability and versatility of this product streamline installation processes and enhance overall system reliability. This set of 10 offers practical solutions for both complex and straightforward wiring needs, reinforcing Schneider Electric's commitment to innovative electrical solutions.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
- Tightening Torque
- 0.6-0.8 N.m
- Length
- 47.7 mm (1.88 in)
- Height
- 47.5 mm (1.87 in)
- Terminal Block Type
- Passthrough
- Mounting Mode
- Clip-on
- Nominal Cross Section
- 4 mm²
- Flame Retardance
- V0 0.8 mm UL 94
- Dielectric Constant
- 3.7 at 1 MHz
- Resistivity
- 10000 MΩ·m IEC 60093, VDE 0303-T30
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093, VDE 0303-T30
- Country of Origin
- China
- Mercury Free
- Yes
- Halogen Content
- Halogen free plastic parts
- Sustainable Offer Status
- Green Premium Product
Rated Current32 A EN/IEC 60947-7-1 || 30 A CSA || 30 A ATEX Exe II Ex II 2 GD || 30 A cURus
Wire Stripping Length9 mm
Width6.2 mm (0.24 in)
Number of Terminals2
Connection PositionSideways
Cable Cross Section Range0.14-6 mm² solid with cable end, 0.2-4 mm² flexible with cable end, 0.2-6 mm² solid without cable end, 0.2-6 mm² flexible without cable end
MaterialPolyamide 6/6 (insulating case), Copper alloy (connector, screw, commoning link), Chromium-nickel steel (spring)
Dielectric Strength1000 V IEC 60243-1
Dielectric Loss0.01 at 1 MHz IEC 60250, VDE 0303-T4
Surface Resistance1000 GΩ IEC 60093, VDE 0303-T30
ColorGreen
Product CertificationsDNV, CSA, cURus, EAC, IECEx, VDE, ATEX, LR, GL
RoHS ComplianceCompliant with Exemptions
Ambient Air Temperature for Operation-40 to 130 °C (-40 to 266 °F)
