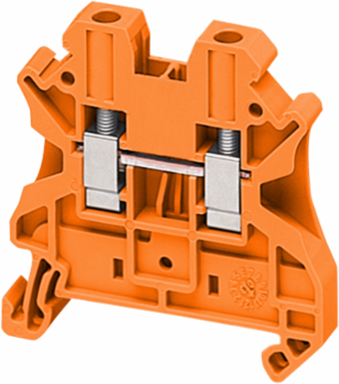

Schneider Electric NSYTRV42AR Linergy TR Terminal Block, 4 mm², Passthrough, Set of 10
- MPN: NSYTRV42AR
- PPN: SCH-NSYTRV42AR
CAD
$3.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYTRV42AR Linergy TR Terminal Block is an essential component designed for efficient electrical connections in automation and control applications. With a cross-sectional area of 4 mm² and a passthrough design, this set of 10 terminal blocks ensures reliable and secure wiring, making it ideal for various terminal block setups. Their robust construction reflects Schneider Electric's commitment to quality and durability, providing both flexibility and ease of use for panel builders and electrical professionals alike.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1, 600 V CSA, 690 V ATEX Exe II Ex II 2 GD, 600 V cURus
- Wire Stripping Length
- 9 mm
- Length
- 47.7 mm (1.88 in)
- Width
- 6.2 mm (0.24 in)
- Connection Position
- Sideways
- Nominal Cross Section
- 4 mm²
- Material
- Polyamide 6/6 insulating case, Copper alloy connector and screw, Copper alloy commoning link, Chromium-nickel steel spring
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250
- Resistivity
- 10000 MΩ·m IEC 60093
- Creep Resistance
- 500 CTI (>400 kB) IEC 60093
- Ambient Air Temperature for Operation
- -40 to 130 °C (-40 to 266 °F)
- RoHS Compliance
- EU RoHS Compliant with Exemptions, Mercury Free, China RoHS
- Halogen Content
- Halogen free plastic parts
- Colour
- Orange
- Device Short Name
- TRV
Rated Current32 A EN/IEC 60947-7-1, 30 A CSA, 30 A ATEX Exe II Ex II 2 GD, 30 A cURus
Tightening Torque0.6-0.8 N.m (5.31-7.08 lbf.in)
Height47.5 mm (1.87 in)
Number of Terminals2
Mounting ModeClip-on
Cable Cross Section0.14-6 mm² solid with cable end, 0.2-4 mm² flexible with cable end, 0.2-6 mm² solid without cable end, 0.2-6 mm² flexible without cable end
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 GΩ IEC 60093
Dielectric Strength1000 V IEC 60243-1
Product CertificationsGL, IECEx, DNV, VDE, CSA, EAC, cURus, ATEX, LR
Reach RegulationContains Substances of Very High Concern above threshold
Sustainable Offer StatusGreen Premium product
Country of OriginChina
Range CompatibilityPrisma G, Prisma P, Prisma PH, Prisma Pack, Spacial, Kaedra, Pragma, TeSys
