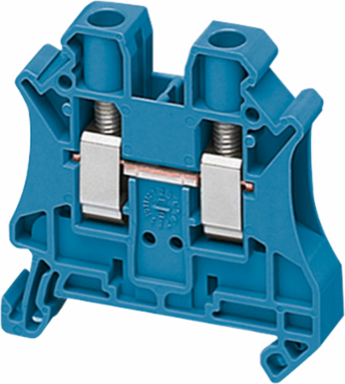

Schneider Electric NSYTRV62BL Linergy TR Terminal Block, Blue, 6mm², Passthrough, Set of 50
- MPN: NSYTRV62BL
- PPN: SCH-NSYTRV62BL
CAD
$4.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYTRV62BL Linergy TR Terminal Block is an essential component for efficient electrical connections in automation and control applications. Designed to accommodate wires up to 6mm², these blue passthrough terminal blocks come in a convenient set of 50, making them ideal for both small and large projects. Their robust design ensures reliable connectivity, enhancing the performance of your electrical installations. Perfectly suited for various terminal block applications, this product exemplifies Schneider Electric's commitment to innovation and quality in the electrical industry.
Documentation & Downloads
Specifications
Additional
- Rated Operational Voltage
- 1000 V EN/IEC 60947-7-1, 600 V CSA, 690 V ATEX Exe II Ex II 2 GD, 600 V cURus
- Tightening Torque
- 1.5 to 1.8 N.m (13.28 to 15.93 lbf.in)
- Width
- 8.2 mm (0.32 in)
- Number of Connections
- 2
- Terminal Block Type
- Passthrough
- Nominal Cross Section
- 6 mm²
- Material
- Polyamide 6/6 insulating case, Copper alloy connector and screw, Copper alloy commoning link, Chromium-nickel steel spring
- Dielectric Loss
- 0.01 at 1 MHz
- Resistivity
- 10000 MΩ·m
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093
- Country of Origin
- Germany
Line Rated Current41 A EN/IEC 60947-7-1, 50 A cURus, 50 A CSA, 40 A ATEX Exe II Ex II 2 GD
Length47.7 mm (1.88 in)
Height47.5 mm (1.87 in)
Connection PositionSideways
Ambient Air Temperature for Operation-40 to 130 °C (-40 to 266 °F)
Cable Cross Section0.2-10 mm² solid with cable end, 0.2-6 mm² flexible with cable end, 0.2-10 mm² solid without cable end, 0.2-10 mm² flexible without cable end
Flame RetardanceV0 0.8 mm UL 94
Dielectric Constant3.7 at 1 MHz
Surface Resistance1000 GΩ
ColorBlue
ComplianceVDE, EAC, GL, IEC-Ex, LR, DNV, CSA, ATEX, cURus
