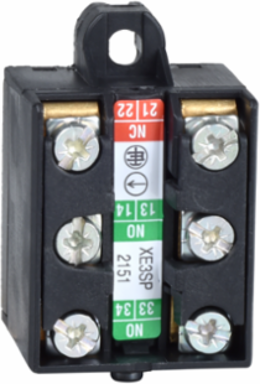

Telemecanique Sensors XE3NP2151 Limit switch contact block, Limit switches XC Standard, 1NC+2 NO, slow break, break before make
- MPN: XE3NP2151
- PPN: TES-XE3NP2151
- UNSPSC: 39121522
CAD
$71.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch contact block, Limit switches XC Standard, 1NC+2 NO, slow break, break before make
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Range Of Product
- Telemecanique Limit switches XC Standard
- Product Or Component Type
- limit switch contact block
- Device Short Name
- XE3N
Contacts Type And Composition2 NO + 1 NC
Contact Operationslow-break, break before make
Associated BodyZCKLD35 || ZCKMD35 || ZCKJD35 || ZCKSD35 || ZCD35 || ZCP35
Number Of Poles3
Complementary
- Electrical Connection
- screw-clamp terminals 1 x 0.34...2 x 0.75 mm²
- Electrical Durability
- 5000000 cycles, DC-13 120 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Positive Opening
- with
- Contacts Insulation Form
- Zb
- Contact Code Designation
- B300, AC-15 (Ue = 240 V), Ie = 1.5 A 6 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
[Ui] Rated Insulation Voltage300 VUL 508 || 300 VCSA C22.2 No 14 || 400 V 3)IEC 60947-1
Short-Circuit Protection6 A cartridge fuse gG
Minimum Actuation Speed6 m/min
Contacts Materialsilver plated contacts
Product CompatibilityXCKL || XCKJ || XCKM || XCKP || XCKD || XCKS
Maximum Resistance Across Terminals25 mOhm IEC 60255-7 category 3
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Reach Free Of SvhcYes
Contractual warranty
- Warranty
- 18 months
