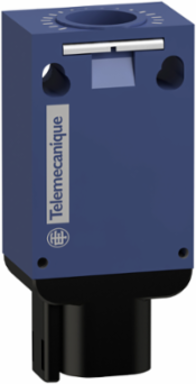

Telemecanique Sensors ZCMV25D44 limit switch body ZCMD - 1NC+1NO - silver - slow action - connection DT04 4P

This product is part of the XC Standard range, an offer of limit switches. This limit switch body has 1 NC and 1 NO, form Zb, snap action contacts. It is a limit switch body with a conventional enclosed thermal current of 6A and rated operating current of 1A at 24V DC and 3A at 24V AC. It is furnished with 4-pin DT04-4P male connector terminals for electrical connection. This fixed limit switch body is made of Zamak. Its dimensions are 30mm (width) x 21mm (depth) x 66mm (height). It weighs 0.065kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with ZCMD limit switches. The associated heads are ZCE29, ZCE02, ZCE06, ZCE07, ZCE08, ZCE65, ZCE66, ZCE01, ZCE63, ZCE21, ZCE106, ZCE016 and ZCE026. Limit switches for contact sensing of inflexible objects. An offer of positive opening snap action contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM limit switches ranges.
