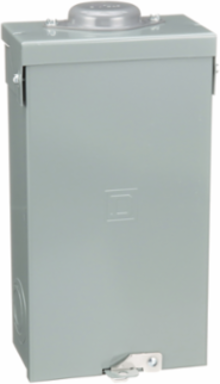

QO Circuit Breaker Loadcentre 100A, 3 Phase, Surface Cover, 4.12 Inch Depth
QO Circuit Breaker Loadcentre 100A, 3 Phase, Surface Cover, 4.12 Inch Depth
QO Circuit Breaker Loadcentre 100A, 3 Phase, Surface Cover, 4.12 Inch Depth
Square D

Square D QO3100BNRB QO Circuit Breaker Loadcentre 100A, 3 Phase, Surface Cover, 4.12 Inch Depth

  • MPN: QO3100BNRB
  • UPC: 785901051770
  • PPN: SCH-QO3100BNRB

CAD

$447.11

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

QO and QOB Circuit Breakers have one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. They are designed to meet residential, commercial, and industrial requirements to protect electrical systems, equipment, and people. These enclosures are rated for indoor or outdoor use, providing flexible applications. This products is certified to adhere to the specifications listed in the data sheet by UL.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico

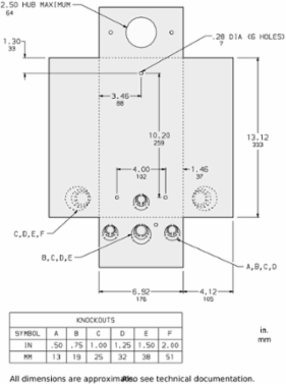

Depth4.12 in

Complementary Attributes

Line Rated Current
100 A

Important Information Attributes

Persona Type Ids
EU, LC, OM, SC
Certificate Agency
UL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.3 kg CO2 eq., 0.342884822
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
18 kg CO2 eq., 18.3591692692
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
1
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2531
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Market Segmentation
Residential
Box Number
10R
Device Composition
grounding bar (ordered separately)
Enclosure Type
enclosure
Load Center Type
main lugs
Phase
3 phase
Product Or Component Type
enclosure
Returnability
Yes
Sustainable Packaging
No
Pep Code
ENVPEP2212003EN
Pep Verification Date
2025-08-01
Psr Version
PSR-0005-ed2-EN-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal
335 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Air Pollution (M3) Operational Energy Use [B6]
7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
1.1052
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
1.1052
Customs Code
8537109150
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]1.2406021237, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0148519238, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.1 kg CO2 eq., 0.087341
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdRESIDENTIAL
Product Kit IdentifierN
Cover Typesurface cover
Enclosure Materialwelded galvannealed steel
Energy Efficiency OptimizedFalse
Number Of Spaces3
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint20 kg CO2 eq.
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Tlaxcala Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %89
Width Nominal176 mm
Package Weight(Lbs)3.67 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Operational Energy Use [B6]4.3059

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back
No
Recycled Metal Content At Cr Level
0 %
Mercury Free
Yes
Environmental Disclosure
ENVPEP2212003EN
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2212003EN
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint20.0448491387
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29

General Attributes

Phase
3 phase
Range Of Product
QO
Product Or Component Typeenclosure

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
