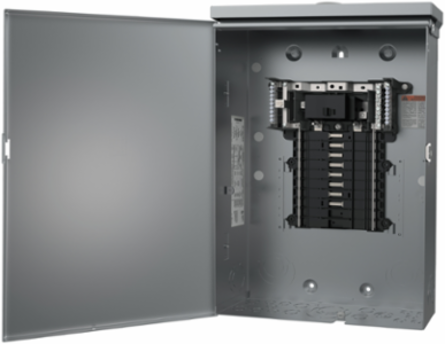

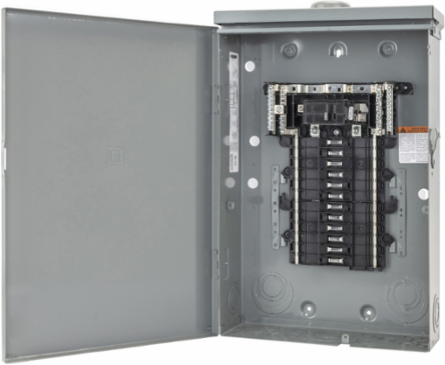

Schneider Electric CQO116M100PRB QO Loadcentre 1 Phase 16 Spaces 30 Circuits 100A NEMA 3R CSA
- MPN: CQO116M100PRB
- UPC: 785901970842
- PPN: SCH-CQO116M100PRB
CAD
$632.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 16 spaces and 24 circuits. This system provides a 100A main breaker in a NEMA 3R enclosure. It also includes plug on neutral and is CSA rated.
Features
- Outfitted with 16 physical slots capable of expanding up to 30 circuits via tandem breakers, this single-phase panelboard maximizes distribution density within a compact box footprint. It gives residential contractors and commercial electricians ample room to run dedicated lines for outdoor HVAC condensers, pool pumps, and detached garage sub-panels without needing a bulky, oversized enclosure.
- Built with an integrated Plug-on Neutral bar, this sub-panel accepts advanced QOTM PoN arc-fault (CAFI) and ground-fault (GFCI) breakers directly onto the bus. This modern architecture completely eliminates the need to cut, strip, and wire individual pigtail conductors, shortening installation times by up to 30% while creating an exceptionally clean, easy-to-troubleshoot gutter space.
- Constructed with a heavy-duty, powder-coated steel NEMA 3R rainproof shell, this outdoor load center keeps internal electrical connections dry and safe from environmental hazards. The top-hinged door shield completely blocks wind-driven rain, sleet, and ice accumulation, making it the ultimate solution for exterior residential sidewalls, farm outbuildings, and harsh commercial job site environments.
- Shipped ready-to-wire with a factory-integrated 100-amp, 2-pole main circuit breaker, this load center establishes a robust 22 kA short-circuit current rating (SCCR) for superior safety margins. It functions perfectly as an all-in-one main service panel or as a standalone outdoor sub-panel with a local, code-compliant emergency service disconnect to protect downstream hardware from high-fault surges.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 114.81 mm |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 3.833325, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0089478794, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2026-07-14 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium |
| Device Composition | grounding bar (ordered separately) |
| Enclosure Material | welded galvannealed steel |
| Load Center Type | PoN Convertible Mains (breaker) |
| Mounting Mode | vertical |
| Number Of Spaces | 16 |
| Phase | 1 phase 3 wires |
| Product Or Component Type | Load Center |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Total Lifecycle Carbon Footprint | 87 kg CO2 eq. |
| Pep Code | ENVPEP2212001EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 560.32 mm |
| Certificate Agency | CSA |
| Short-circuit Current | 22 kA |
| Package Weight(Lbs) | 11.34 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Manufacturing [A1-a3] | 3900.15 |
| Customs Code | 8537109150 |
| Persona Type Names | End User, Contractor |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.1889727941 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 82 kg CO2 eq., 81.8314411765 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Cover Type | surface cover |
| Electrical Connection | lugs |
| Energy Efficiency Optimized | False |
| Material | tin plated copper: busbar |
| Number Of Circuits | 30 |
| Number Of Tandem Circuit Breakers | 14 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Lexington |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 374.65 mm |
| [Ue] Rated Operational Voltage | 240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001EN |
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2212001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 86.95002785 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Phase | 1 phase 3 wires |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | Load Center |
|---|
ETIM
| ETIM 8 | EC000214 |
|---|
| ETIM 9 | EC000214 |
|---|
