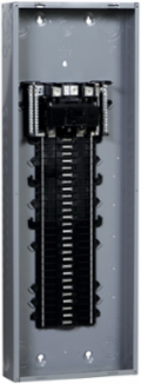

QO Loadcentre 1 Phase 16 Spaces 30 Circuits 100A NEMA 3R
Square D

Square D CQO116L100PGRB QO Loadcentre 1 Phase 16 Spaces 30 Circuits 100A NEMA 3R

  • MPN: CQO116L100PGRB
  • UPC: 785901970798
  • PPN: SCH-CQO116L100PGRB

CAD

$325.35

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

QO Loadcentres offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Loadcentres are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Loadcentres enable the use of a full complement of accessories. This 1 phase loadcentre has 16 spaces and 30 circuits. This system provides a 100A main lugs in a NEMA 3R enclosure. It also includes plug on neutral, ground bar, and is CSA rated.

Features

  • Engineered with a rugged NEMA 3R rainproof rated enclosure, this exterior load center is specifically designed to completely seal out rain, ice, and snow. It provides maximum component protection for outbuildings, detached garages, or hot tub installations without the risk of water intrusion or premature rust.
  • The innovative Plug-on Neutral (PoN) architecture eliminates the need for time-consuming pigtail wiring on compatible CAFI arc-fault and dual-function breakers. By snapping your branch breakers directly onto the neutral bar, you instantly clean up your gutter space, maximize airflow, and reduce your overall wiring labor by up to 20 percent.
  • Featuring 16 spaces expandable up to 30 circuits via tandem breakers, this 100-Amp main lug panel offers high-density capacity in a compact footprint. It gives you plenty of room to scale out dedicated circuits for EV chargers, workshops, or outdoor lighting zones without forcing you to buy a larger, more expensive panelboard.
  • Built with tin-plated, shielded copper bus bars and boasting an exceptional 65 kA short-circuit current interrupt rating, this premium load center delivers superior conductivity and handles heavy electrical surges with ease. The shielded design prevents accidental contact during servicing, guaranteeing safe, stable power distribution for high-demand residential and light commercial systems.
  • Fully CSA certified for Canadian electrical code standards and shipped with a factory-installed ground bar, this package eliminates unexpected trips to the distributor for missing parts. The pre-drilled main and branch breaker knockouts simplify your conduit alignment, ensuring a clean, code-compliant sign-off from local electrical inspectors.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Depth115 mm

Complementary Attributes

Line Rated Current
100 A

Important Information Attributes

Persona Type Ids
EU, LC, SC
Carbon Footprint Of The Distribution Phase [A4]
3.833325, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0089478794, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
0.1 kg CO2 eq., 0.087341
Local Publishable Date
2026-07-14
Stocking Flag
N
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2532
China Rohs In Scope
No
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Market Segmentation Id
RESIDENTIAL
Product Kit Identifier
N
Cover Type
surface cover
Electrical Connection
lugs
Energy Efficiency Optimized
False
Material
tin plated copper: busbar
Number Of Circuits
30
Number Of Tandem Circuit Breakers
14
Product Availability
Stock - Normally stocked in distribution facility
Provided Equipment
grounding bar
Returnability
Yes
Surface Finish
baked enamel Gray
Tightening Torque
main lugs 50 lb.in, 6 AWG...2/0 AWG, aluminium/copper
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2022-01
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Energy model used: Lexington
Energy Model - Use [B6]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Recyclability Potential In %
88
Width Nominal
375 mm
[Ue] Rated Operational Voltage
240 V AC
Nbr. Of Units In Pkg.
1
Take-back
No
Air Pollution (M3) Operational Energy Use [B6]
7.4172
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
1.1052
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
1.1052
Water Pollution (M3) Operational Energy Use [B6]
4.3059
Persona Type NamesEnd User, Contractor, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.1889727941
Carbon Footprint Of The Manufacturing Phase [A1 To A3]82 kg CO2 eq., 81.8314411765
Local Data StatusPublishable
Return IndicatorY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...1/0 AWG copper12 AWG...1/0 AWG aluminium
Device Compositiongrounding bar included (not installed)
Enclosure Materialwelded galvannealed steel
Load Center TypePoN Convertible Mains (lugs)
Mounting Modevertical
Number Of Spaces16
Phase1 phase 3 wires
Product Or Component TypeLoad Center
Range Of ProductQO
Software VersionEIME v5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint87 kg CO2 eq.
Pep CodeENVPEP2212001EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal758 mm
Certificate AgencyCSA
Short-circuit Current65 kA
Package Weight(Lbs)11.34 kg
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.0634
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.1758
Water Pollution (M3) Manufacturing [A1-a3]3900.15
Customs Code8538100000

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back
No
Mercury Free
Yes
Environmental Disclosure
ENVPEP2212001EN
Nema Degree Of Protection
NEMA 3R weatherproof enclosure
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP2212001EN
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Ambient Air Temperature For Operation-5 °C, -5 °C, 40 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint86.95002785
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29

General Attributes

Phase
1 phase 3 wires
Provided Equipment
grounding bar
Product Or Component TypeLoad Center
Range Of ProductQO

ETIM

ETIM 8
EC000214
ETIM 9EC000214
