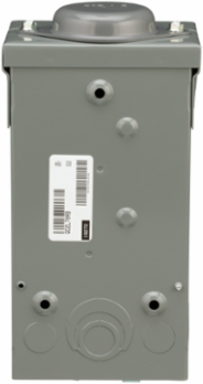

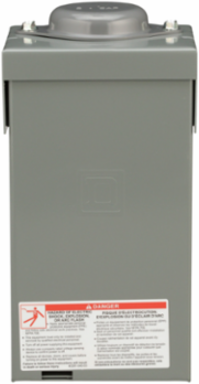

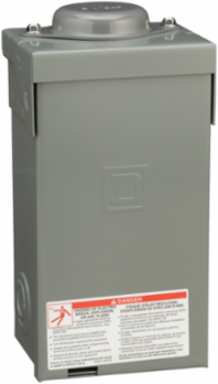

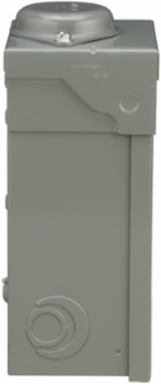

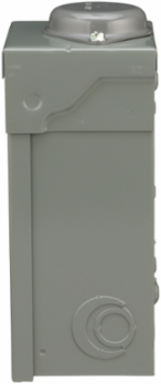

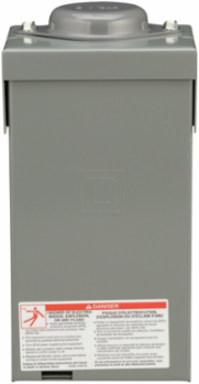

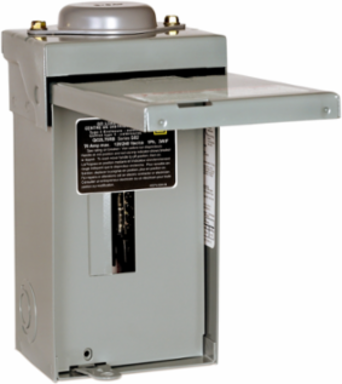

Square D QO2L70RB Load Center 1 Phase 2 Spaces 2 Circuits 70A NEMA 3R UL Certified
- MPN: QO2L70RB
- UPC: 785901965701
- PPN: SCH-QO2L70RB
CAD
$158.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 2 spaces and 2 circuits. This system provides 70A fixed main lugs in a NEMA 3R enclosure. This product is UL rated.
Features
- Built with a rugged, galvanized steel NEMA 3R rainproof enclosure, this load center is specifically designed to protect electrical connections from rain, sleet, and ice. It is the ideal solution for outdoor installations such as pool pumps, detached garages, or HVAC condensing units, ensuring long-term durability and preventing moisture-related corrosion or short circuits.
- Featuring a high-conductivity tin-plated copper bus bar rated for 70 Amps, this compact load center is engineered to function as a reliable sub-panel or add-on distribution point. It provides a safe, efficient way to expand your electrical system, allowing you to run multiple dedicated circuits to a specific area of your property without overloading your primary service panel.
- Equipped with the exclusive Visi-Trip red flag indicator, this breaker provides an instant visual cue when the circuit has tripped due to an overload or short circuit. This professional-grade feature eliminates the need to manually toggle every switch in the panel, allowing homeowners and electricians to identify, diagnose, and reset the fault in seconds.
- This specialized QO load center is strictly designed to accept only two full-size QO circuit breakers, preventing the installation of tandem (wafer) breakers that can lead to panel overcrowding or heat buildup. By enforcing a "2 spaces, 2 circuits" limit, the panel guarantees a clean, code-compliant installation that prevents DIYers or contractors from accidentally overloading the bus bar beyond its 70-Amp thermal capacity.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 100 mm |
|---|
Complementary Attributes
| Line Rated Current | 70 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM |
|---|---|
| Tightening Torque | main lugs 35 lb.in, 14 AWG...10 AWG, aluminium/coppermain lugs 45 lb.in, 3 AWG, aluminium/coppermain lugs 40 lb.in, 8 AWG...4 AWG, aluminium/copper, main lugs 35 lb.in, 12 AWG...10 AWG, aluminium/copper |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.1413134934 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 10.0036113537 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Cover Type | surface cover |
| Electrical Connection | lugs |
| Energy Efficiency Optimized | False |
| Material | tin plated aluminium: busbar |
| Number Of Circuits | 2 |
| Phase | 1 phase 3 wires |
| Product Or Component Type | Load Center |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Total Lifecycle Carbon Footprint | 15 kg CO2 eq. |
| Pep Code | ENVPEP2212002EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 236 mm |
| Certificate Agency | cULus |
| Short-circuit Current | 10 kA |
| Package Weight(Lbs) | 2.272 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 49.182 |
| Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 0.108 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 54.382 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 51.116 |
| Water Pollution (M3) Operational Energy Use [B6] | 199.15 |
| Persona Type Names | End User, Original Equipment Manufacturer |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.780870786, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0510237642, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 4 kg CO2 eq., 4.0395 |
| Local Publishable Date | 2026-07-14 |
| Stocking Flag | N |
| Use Carbon Footprint | 4.0395 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...2 AWG aluminium/copper |
| Device Composition | grounding bar (ordered separately) |
| Enclosure Material | welded galvannealed steel |
| Load Center Type | Fixed Mains (lugs) |
| Mounting Mode | vertical |
| Number Of Spaces | 2 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 952.5mm x1219.2mm x 101.6mm, comply with UL 67 and CSA22.2 with an available offer:& 10-suitable for use on 120/240 Vac and 48 Vdc systems& 10-rated 30–125 A& 10-supplies from two to sixteen circuits& 10-surface or flush-mounted cover& 10-Types 1 & 3R& 10-main lugs only |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Tlaxcala Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 90 |
| Width Nominal | 121 mm |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 343.04 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 4.0395 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 51.116 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 3.266 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 3.266 |
| Customs Code | 8537109150 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212002EN |
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 15.0163193974 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2212002EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 1 phase 3 wires |
|---|---|
| Range Of Product | QO |
| Product Or Component Type | Load Center |
|---|
ETIM
| ETIM 8 | EC000214 |
|---|
| ETIM 9 | EC000214 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
