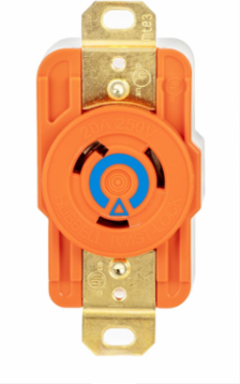

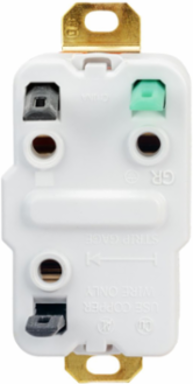

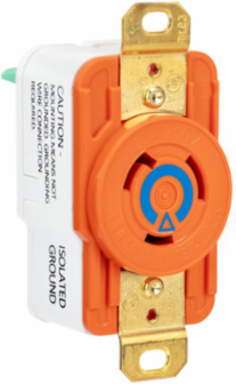

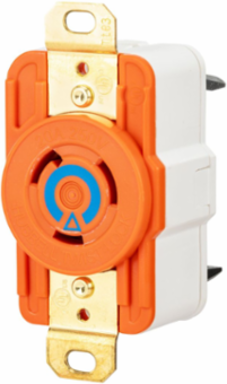

Hubbell Wiring Device-Kellems IG2320ST EdgeConnect Isolated Ground Flush Receptacle 20A 250V 2-Pole 3-Wire Orange
- MPN: IG2320ST
- UPC: 783585730387
- PPN: HBL-IG2320ST
- UNSPSC: 39121406
CAD
$99.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking Devices, EdgeConnect™, Isolated Ground Industrial, Flush Receptacle, 20A 250V, 2-Pole 3-Wire Grounding, L6-20R, Spring Termination, Orange
Features
- Insulation barrier construction isolates ground contact from mounting strap
- Spring termination greatly reduces the possibility of loosening the terminal connection with vibration and strand relaxation over time
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Isolated Ground
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 3.28 in x 1.70 in x 1.24 in |
| Horsepower - Maximum | 2 |
| Length | 3.28 in |
| Application | Heavy Duty Industrial |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | L6-20R |
| Number of Wires | 3-Wire Grounding |
| Size | 3.28 in x 1.70 in x 1.24 in |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating |
| Voltage Rating | 250 V |
| Weight | 0.25 lb. |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology |
| General Literature Asset 3 Display Text | EdgeConnect™ Termination vs Standard Push Wire |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum without Impact -40 °C |
| Class Code | A08 |
| Harmonization Code | 8536698000 |
| Sub Class Code | A08A110 |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 50.600 in |
| Pallet Weight | 913.000 lb. |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 1.24 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating |
| Performance | Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 - #8 AWG solid or stranded copper wire;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact) |
| Color | Orange |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Isolated Ground |
| Type | Isolated Ground |
| Wire Size | #16 AWG to #8 AWG |
| Width | 1.70 in |
| General Literature Asset 2 Display Text | EdgeConnect™ Technology FAQ |
| Connectivity | Spring Termination |
| Nema Rating | L6-20R |
| Number Of Wires | 3-Wire Grounding |
| Style | Locking Devices |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Material - Mounting Hardware | Screw Mounting |
| Series | EdgeConnect™ Series |
| BOX SIZE | 7.600x12.400x8.700 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585730387 |
| Case Weight | 0.000 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
