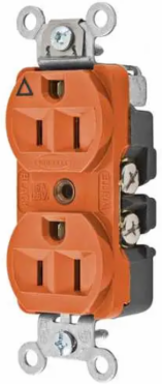

Hubbell Wiring Device-Kellems CR5252IG Hubbell-Pro Heavy Duty Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, Orange
- MPN: CR5252IG
- UPC: 783585387352
- PPN: HBL-CR5252IG
- UNSPSC: 39121406
CAD
$27.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Hubbell-Pro Heavy Duty, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Orange, Single Pack, Isolated Ground.
Features
- Triangle marking on face indicates isolated ground
- Slender/compact design
- Finder Groove Face
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.33 in x 1.05 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Hubbell-Pro Heavy Duty
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.33 in x 1.05 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.22 lb.
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Finder Groove Face
- Description - Invoice
- DUP RCPT, IG, CONST GRD, 15A 125V, OR
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A060
- Current Rating
- 15 A
- Series
- Hubbell-PRO
- BOX SIZE
- 3.500x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585387352
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585387351
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Height1.05 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating15 A
ColorOrange
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesIsolated Ground
TypeIsolated Ground
Wattage1875 W
Voltage Rating Description125 V
Width1.33 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberCR5252IGCN
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.6 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight27.250 lb.
Lowest Level UOMEach
Pallet Height39.200 in
Pallet Weight1090.000 lb.
NAICS Code335931A102
