Hubbell Wiring Device-Kellems

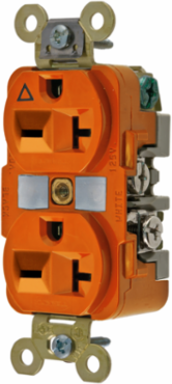

Hubbell Wiring Device-Kellems IG5462 Isolated Ground Duplex Receptacle, 2-Pole 3-Wire, 20A 250V, Orange, 3.28x1.33x1.05 Inch

  • MPN: IG5462
  • UPC: 783585880556
  • PPN: HBL-IG5462
  • UNSPSC: 39121406

CAD

$121.71

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Straight Blade Devices, Receptacles, Duplex, Specification Grade, 2-Pole 3-Wire Grounding, 20A 250V, 6-20R, Orange, Single Pack

Features

  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Finder Groove Face
  • Reduces installation time
  • Fully insulated design
  • Isolated Ground

Specifications

Additional

Amperage20 A
Horsepower2 HP
Number of Wires3-Wire
Dielectric StrengthWithstands 2,000 V minimum
StyleFinder Groove Face
Height1.05 in
Length3.28 in
MaterialNylon
Base MaterialPBT
Mounting Strap MaterialGalvanized Steel
Mounting Screws MaterialStainless Steel
NEMA Rating6-20R
ColorOrange
PhaseSingle Phase
Operating EnvironmentIndoor Dry Unless Protected By Additional Means
Voltage250 V
Number of Poles2-Pole
TypeStandard Duplex
Operating Temperature-40 C to 75 C maximum continuous
Size3.28 in x 1.33 in x 1.05 in
Width1.33 in
Wire Size#14 AWG to #10 AWG
Material - Mounting HardwareScrew Mounting
Ground Contact MaterialBrass
Terminal Screws MaterialBrass
Clamp MaterialNickel Plated Steel
ComplianceCertified to CSA 22.2 No. 42; UL Listed to UL498; RoHS Compliant
Country of OriginUS
ConnectivityBack and Side Wired Screw Terminals
SeriesExtra Heavy Duty
Isolated Ground Duplex Receptacle, 2-Pole 3-Wire, 20A 250V, Orange, 3.28x1.33x1.05 Inch
