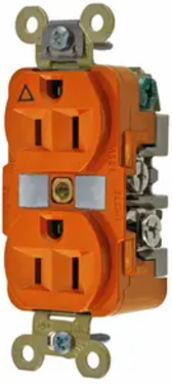

Hubbell Wiring Device-Kellems IG5262 Isolated Ground Duplex Receptacle, 15A 125V, Orange, 3.28 Inch
- MPN: IG5262
- UPC: 783585756530
- PPN: HBL-IG5262
- UNSPSC: 39121406
CAD
$29.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, Isolated ground, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Orange, Single Pack
Features
- Triangle marking on face indicates isolated ground
- Slender compact design
- Finder Groove Face
- Isolated Ground
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- 2017 NEC® Code Changes Guide
- Current / Amperage Rating
- 15 A
- Height
- 1.05 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 15 A
- Color
- Orange
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Type
- Standard Duplex
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.33 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- IG5262CN
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.55 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 27.500 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 39.200 in
- Pallet Weight
- 1100.000 lb.
- NAICS Code
- 335931A102
Country of OriginUnited States
Dimensions3.28 in x 1.33 in x 1.05 in
Horsepower - Maximum0.5
Length3.28 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.33 in x 1.05 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. WC596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#14 AWG to #10 AWG
Weight0.2 lb.
ConnectivityBack and Side Wired Screw Terminals
Nema Rating5-15R
Number Of Wires3-Wire
StyleFinder Groove Face
Description - InvoiceDUP RCPT, IG, 15A 125V, 5-15R, OR
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA04A060
Current Rating15 A
SeriesHeavy Duty
BOX SIZE3.500x9.900x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585756530
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585756539
Pallet Length48.000 in
Pallet Width40.000 in
