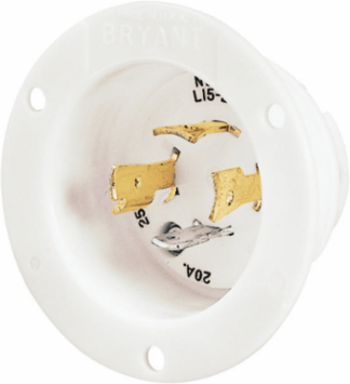

Bryant 71520MB Industrial Flanged Inlet Locking Device 20A 3-Phase 250V AC 3-Pole
Bryant 71520MB Industrial Flanged Inlet Locking Device 20A 3-Phase 250V AC 3-Pole
- MPN: 71520MB
- UPC: 781786695863
- PPN: HBL-71520MB
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$104.46/ EA
Description
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-20P, Screw Terminal, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Specifications
Specifications
- NEMA Rating
- L15-20P
- Number of Wires
- 4-Wire
- Special Features
- Standard Product
- Color
- White
- Height
- 2.03 in
- Voltage Rating
- 3 Phase 250 VAC
- Width
- 3.06 in
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 3000V Minimum
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Nema Rating
- L15-20P
- Number Of Wires
- 4-Wire
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Wire Size
- #18 AWG to #8 AWG
- Description - Invoice
- LKG FLG-INLT, 20A 3PH 250V, L15-20P,WH
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.400x12.100x6.000 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786695863
- Case Weight
- 2.400 lb.
- Lowest Level UOM
- Each
Number of Poles3-Pole
Size3.06 in x 3.06 in x 2.03 in
Country of OriginUnited States
Dimensions3.06 in x 3.06 in x 2.03 in
Length3.06 in
Voltage Rating Description3 Phase 250V AC
Amperage Rating20 A
ConnectivityScrew Terminals
Display SizeStandard Sized Product
InsulationInsulated Body
Number Of Poles3-Pole
StyleEquipment Base
TypeFlanged Inlet
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
