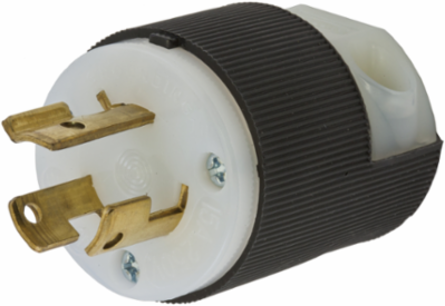

Hubbell Wiring Device-Kellems HBL4570C Twist-Lock® Male Plug, 15A 250V, 2-Pole 3-Wire, Black/White
Hubbell Wiring Device-Kellems HBL4570C Twist-Lock® Male Plug, 15A 250V, 2-Pole 3-Wire, Black/White
- MPN: HBL4570C
- UPC: 783585170008
- PPN: HBL-HBL4570C
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$30.72/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 15A 250V, 2-Pole 3-Wire Grounding, NEMA L6-15P, Screw Terminal, Black and White Nylon.
Features
- Individually molded face for each blade configuration
- Roomy wiring chamber provides ample space for wiring
- Ribbed nylon housing provides a secure grip that’s impact and chemical resistant
- Standard Product
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 1.53 in x 1.53 in x 1.97 in
- Height
- 1.97 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 15 A
- Color
- Noir, blanc
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Plugs
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.15 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG PLUG, 15A 250V, L6-15P, B/W
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.230"-0.720"(5.8-18.3)
- Cord Diameter
- 0.230-0.720 in
- Material
- Nylon
- BOX SIZE
- 3.500x10.000x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585170008
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585170007
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating15 A
Each - Width1.900 in
Horsepower - Maximum1.5
Length1.53 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL6-15P
Number of Wires3-Wire
Size1.53 in x 1.53 in x 1.97 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating250 V
Voltage Rating Description250 V
Width1.53 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL6-15P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4570C
Cable Range0.230 - 0.720 in
Material - Mounting HardwareCord Mounted
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight11.742 lb.
Lowest Level UOMEach
Pallet Height39.600 in
Pallet Weight660.600 lb.
Certifications
- EU RoHS Indicator
- Yes
