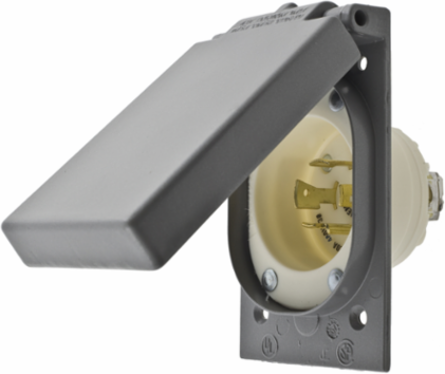

Bryant 71620MBWP Industrial Locking Device Flanged Inlet 20A 3-Pole 480V AC Weatherproof
- MPN: 71620MBWP
- UPC: 781786696877
- PPN: HBL-71620MBWP
- UNSPSC: 39121406
CAD
$229.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-20P, Screw Terminal, White, With Weatherproof Cover
Features
- Flanged Inlet
- 20A 3-Phase Delta 480V AC
- 3-Pole 4-Wire Grounding
- L16-20P
- Screw Terminal
- Integral Weatherproofing Cover
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2.02 in
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Weather Resistant
- NEMA Rating
- L16-20P
- Number of Wires
- 4-Wire
- Special Features
- Integral Weatherproofing Cover
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #8 AWG
- Width
- 2.88 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Style
- Weatherprotective
- Description - Invoice
- LKG FLG-INLT, 20A 3PH 480V, L16-20P, WP
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786696877
- Each - Pack Description
- Each
Dimensions2.88 in x 2.88 in x 2.02 in
Length2.88 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles3-Pole
Size2.88 in x 2.88 in x 2.02 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating3 Phase 480 VAC
Voltage Rating Description3 Phase 480 VAC
ConnectivityScrew Terminals
Nema RatingL16-20P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
