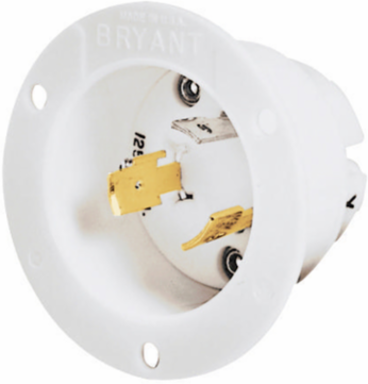

Bryant 71120MB Locking Device, Flanged Inlet, 20A, 3-Pole, 250V AC, 2.88 Inch

MPN: 71120MB
UPC: 781786693364
PPN: HBL-71120MB
UNSPSC: 39121406

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$76.91/ EA

Qty:

Loading add to cart quantity...

Description

Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Delta 250V AC, 3-Pole 3-Wire Non-Grounding, L11-20P, Screw Terminal, White.

Features

Impact resistant thermoplastic construction
Backwired terminations for ease of installation
#10-32 Multiple drive terminal screws
Mounting screws included
Standard Product

Specifications

Country of Origin: United States

Height: 2.02 in

Standards - RoHS Compliance Status: CM

Application: Extra Heavy Duty Industrial

Dielectric Strength: Withstands 3000V Minimum

Insulation: Insulated Body

Number of Poles: 3-Pole

Size: 2.88 in x 2.88 in x 2.02 in

Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact

Voltage Rating: 3 Phase 250 VAC

Voltage Rating Description: 3 Phase 250V AC

Connectivity: Screw Terminals

Nema Rating: L11-20P

Number Of Wires: 3-Wire

Class Code: A08

Freight Class Code: 06168002

Image Actual Or Representative: A

Sub Class Code: A08A172

Current Rating: 20 A

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 2.2 lb.

Carton - Pack Description: Carton

Carton - Total Units: 10 EA

Lowest Level UOM: Each

Dimensions2.88 in x 2.88 in x 2.02 in

Length2.88 in

Amperage Rating20 A

ColorWhite

Environmental ConditionsIndoor Dry Unless Protected By Additional Means

NEMA RatingL11-20P

Number of Wires3-Wire

Special FeaturesStandard Product

TypeFlanged Inlet

Wire Size#18 AWG to #8 AWG

Width2.88 in

Display SizeStandard Sized Product

Number Of Poles3-Pole

StyleEquipment Base

Description - InvoiceLKG FLG-INLT, 20A 3PH 250V, L11-20P,WH

Harmonization Code8536694020

MSDS FlagNo

Material - Mounting HardwareScrew Mounting

MaterialComposite

BOX SIZE5.300x14.600x6.100 (in)

Carton - Number of Sub Packs10

Carton - SCC-14 Next Lower Level Sub Pack781786693364

Each - Pack DescriptionEach

Certifications

EU RoHS Indicator: Yes
