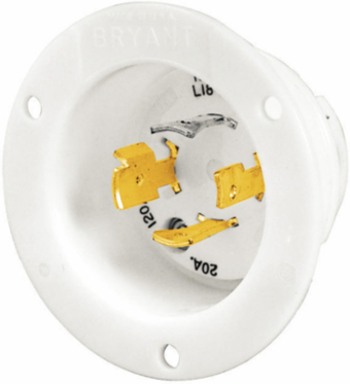

Bryant 72020MB Industrial Locking Device, Flanged Inlet 20A 3-Phase Wye 347/600V AC, 4-Pole
- MPN: 72020MB
- UPC: 781786700260
- PPN: HBL-72020MB
- UNSPSC: 39121406
CAD
$88.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flanged Inlet, 20A 3-Phase Wye 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20-20P, Screw Terminal, White.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws
- Mounting screws included
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2.03 in
- Amperage Rating
- 20 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- L20-20P
- Number of Wires
- 4-Wire
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #8 AWG
- Width
- 3.06 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 4-Pole
- Style
- Equipment Base
- Description - Invoice
- LKG FLG-INLT, 20A 347/600V, L20-20P,WH
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786700260
- Each - Pack Description
- Each
Dimensions3.06 in x 3.06 in x 2.03 in
Length3.06 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum
InsulationInsulated Body
Number of Poles4-Pole
Size3.06 in x 3.06 in x 2.03 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating3 Phase Y 277/480 VAC
Voltage Rating Description3 Phase Y 277/480V AC
ConnectivityScrew Terminals
Nema RatingL20-20P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.45 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
