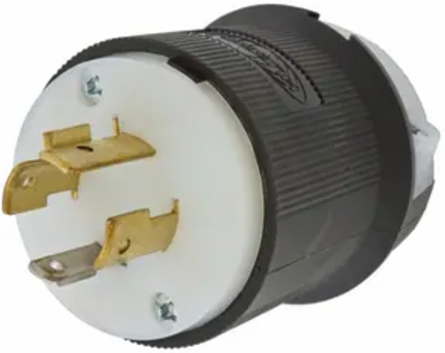

Hubbell Wiring Device-Kellems HBL2411 20A 125/250V Twist-Lock Male Plug, 3-Pole 4-Wire, NEMA L14-20P, Nylon
- MPN: HBL2411
- UPC: 783585038131
- PPN: HBL-HBL2411
- UNSPSC: 39121402
CAD
$54.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125/250V AC, 3- Pole 4-Wire Grounding, NEMA L14-20P, Screw Terminal, Black and White Nylon.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 3-Pole
- NEMA Rating
- L14-20P
- Phase
- Single Phase
- Operating Temperature
- -40°C to 75°C
- Length
- 2.33 in
- Height
- 2.75 in
- Cord Range
- 0.350 in - 1.150 in (9-29 mm)
- Material
- Nylon
- Connectivity
- Pressure Terminal Screws
- EU RoHS Indicator
- Yes
- Country of Origin
- US
Voltage125/250 VAC
Number of Wires4-Wire
Current Rating20 A
Dielectric Strength2000 V minimum
Dimensions2.33 in x 2.33 in x 2.75 in
Width2.33 in
Weight0.20 lb
Wire Size Range#16 AWG to #8 AWG
Material - Mounting HardwareCord Mounted
CertificationsCSA C22.2 No.42, UL 498, Fed.Spec. W-C-596, RoHS Compliant
Buy American CompliantYes
ColorBlack, White
