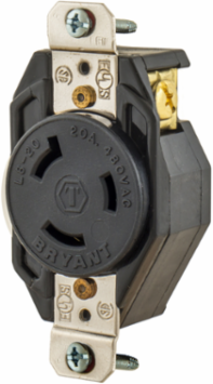

Bryant 70920FR Locking Receptacle, 20A 600V AC, 2-Pole 3-Wire Grounding, L9-20R, Composite, 3.28 Inch
Bryant 70920FR Locking Receptacle, 20A 600V AC, 2-Pole 3-Wire Grounding, L9-20R, Composite, 3.28 Inch
- MPN: 70920FR
- UPC: 781786691636
- PPN: HBL-70920FR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$98.03/ EA
Description
Locking Devices, Industrial, Flush Nylon Receptacle, 20A 600V AC, 2-Pole 3-Wire Grounding, L9-20R, Screw Terminal, Black/White
Features
- Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
- Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
- NEMA rating and configuration are molded into face for easy identification
- One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
- Standard Product
Specifications
Specifications
- NEMA Rating
- L9-20R
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Dimensions
- 3.28 in x 1.70 in x 1.24 in
- Length
- 3.28 in
- Voltage Rating
- 600 VAC
- Width
- 1.70 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- Display Size
- Standard Sized Product
- Nema Rating
- L9-20R
- Number Of Wires
- 3-Wire
- Style
- Single Receptacle
- Wire Size
- #14 AWG to #8 AWG
- Description - Invoice
- LKG RCPT, 20A 600V, L9-20R, BK
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786691636
- Each - Pack Description
- Each
Number of Poles2-Pole
Size3.28 in x 1.70 in x 1.24 in
Country of OriginUnited States
Height1.24 in
Standards - RoHS Compliance StatusCM
Voltage Rating Description600V AC
Amperage Rating20 A
ConnectivityTerminal Screws
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Poles2-Pole
PhaseSingle Phase
TypeReceptacle
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
Downloads
