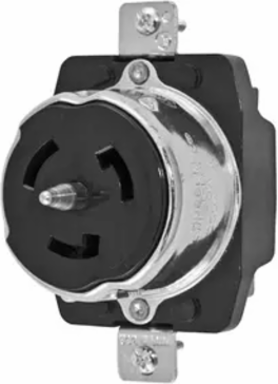

Hubbell Wiring Device-Kellems CS8369 Locking Receptacle 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire, Screw Terminal, 2.69x2.12x2.36 Inch
- MPN: CS8369
- UPC: 783585829074
- PPN: HBL-CS8369
- UNSPSC: 39121406
CAD
$185.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Locking Devices, Twist-Lock®, Industrial, Receptacle, 50A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black
Features
- Thermoset construction offers high heat resistance
- Armored housing provides superior impact resistance
- One piece contacts provide low operating temperatures
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 2.69 in x 2.12 in x 2.36 in |
| Industry Standard(s) | Certified to CSA C22.2 No.42;Listed to UL 498;WR Rating |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Wires | 4-Wire |
| Size | 2.69 in x 2.12 in x 2.36 in |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498;WR Rating |
| Voltage Rating | 3-Phase Delta 250 VAC |
| Voltage Rating Description | 3-Phase Delta 250 VAC |
| Width | 2.12 in |
| General Literature Asset 2 Display Text | 50 Amp Twist-Lock® Devices |
| Connectivity | Screw Terminals |
| Number Of Poles | 3-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | LOCKING RCPT, 50A 3PH 250V, 3P4W |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Buy America(n) Qualified | BABA Compliant (All status valid till December 2026) |
| Current Rating | 50 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.150 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585829073 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Current / Amperage Rating | 50 A |
|---|---|
| Height | 2.36 in |
| Length | 2.69 in |
| Amperage Rating | 50 A |
| Dielectric Strength | Withstands 2,000V minimum |
| Number of Poles | 3-Pole |
| Phase | Three Phase |
| Special Features | Standard Product |
| Type | Receptacle |
| Wire Size | #10 AWG to #6 AWG |
| Weight | 0.75 lb. |
| General Literature Asset 1 Display Text | Food Processing Guide |
| General Literature Asset 3 Display Text | Emergency Preparedness for Healthcare |
| Display Size | Standard Sized Product |
| Number Of Wires | 4-Wire |
| Class Code | A08 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A08A150 |
| Material - Mounting Hardware | Screw Mounting |
| Material | Phenolic |
| BOX SIZE | 2.600x10.000x8.750 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585829074 |
| Case Weight | 8.350 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 40.600 in |
| Pallet Weight | 1176.000 lb. |
| NAICS Code | 335931A102 |
