Pass & Seymour L630R Turnlok® 30A Locking Single Receptacle, 1.28 Inch Height, Black
- MPN: L630R
- UPC: 785007263053
- PPN: P-S-L630R
CAD
$40.56
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

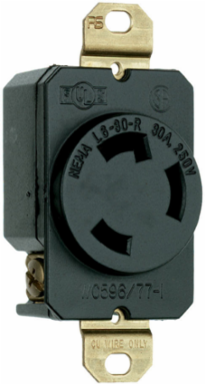

Turnlok® 30A Locking Single Receptacle, 1.28 Inch Height, Black
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- Face color coding by voltage facilitates locating and mating of proper devices.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
- Accepts #14 - #10 AWG.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 3.48 in
- Height
- 1.28 in
- Width
- 1.61 in
- Amperage
- 30.0 A
- Voltage
- 250.0 V
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Poles
- Double Pole
- Connection Location
- Side Only
- NEMA Configuration Code
- L6-30R
- Warranty Type
- 1-Year Limited Warranty
ColorBlack
Product LinePass & Seymour
Country of OriginMexico
StandardUL 498
StandardFEDSPEC
Outlet TypeLocking
Wire Size14 - 10 AWG
Number of Receptacles1.0
Application SectorIndustrial
FeaturesBrass Mounting Strap
Wire Connection TypeScrew Terminals
Special FeaturesLocking Device, impact resistant
