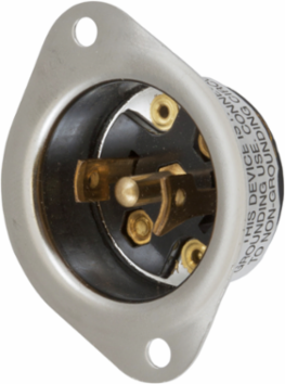

Hubbell Wiring Device-Kellems HBL7486 Midget Twist-Lock Flanged Inlet, 15A 125/250V, 3-Pole, Stainless Steel
- MPN: HBL7486
- UPC: 783585237442
- PPN: HBL-HBL7486
- UNSPSC: 39121406
CAD
$40.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Stainless Steel Flange.
Features
- Stainless Steel mounting flange
- High heat resistant phenolic base
- Metallic Flange
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Insulgrip® Straight Blade and Twist-Lock® Devices
- Current / Amperage Rating
- 15 A
- Height
- 0.98 in
- Length
- 2.06 in
- Amperage Rating
- 15 A
- Color
- Black, Stainless
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- ML-3P
- Number of Wires
- 3-Wire
- Size
- 2.06 in x 1.63 in x 0.98 in
- Standard
- Listed to UL 498
- Type
- Flanged Inlet
- Wire Size
- #18 AWG to #14 AWG
- Weight
- 0.05 lb.
- Connectivity
- Screw Terminals
- Nema Rating
- ML-3P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7486
- Cord Range
- 0.220"-0.385"(5.6-9.8)
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.9 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.250 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.000 in
- Pallet Weight
- 525.000 lb.
- NAICS Code
- 335931A102
Country of OriginUnited States
Dimensions2.06 in x 1.63 in x 0.98 in
Industry Standard(s)Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationHeavy Duty Industrial
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Poles3-Pole
PhaseSingle Phase
Special FeaturesMetallic Flange
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating125/250 V
Voltage Rating Description125/250 V
Width1.63 in
Display SizeMidget Locking
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG F-INLT,MIDGET,15A 125/250V,ML-3P,MET
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA08A110
Material - Mounting HardwareScrew Mounting
MaterialStainless Steel
BOX SIZE3.300x12.300x2.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585237442
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585237441
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
