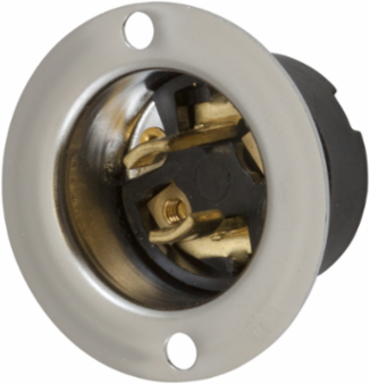

Hubbell Wiring Device-Kellems HBL7466 Midget Twist-Lock Flanged Inlet, 15A 125V AC, 2-Pole, Stainless Steel
- MPN: HBL7466
- UPC: 783585237312
- PPN: HBL-HBL7466
- UNSPSC: 39121406
CAD
$43.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML-1P, Screw Terminal, Stainless Steel Flange, Non-Polarized.
Features
- Stainless Steel mounting flange
- High heat resistant phenolic base
- Non-Polarized
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 1.63 in x 1.63 in x 0.94 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Non-Polarized
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 1.63 in
- Display Size
- Midget Locking
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-INLET,MIDGET,15A 125V,ML-1P,POL
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.9 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.150 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 46.000 in
- Pallet Weight
- 515.000 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Height0.94 in
Length1.63 in
Amperage Rating15 A
ColorBlack
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingML-1P
Number of Wires2-Wire
Size1.63 in x 1.63 in x 0.94 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498
TypeFlanged Inlet
Wire Size#18 AWG to #14 AWG
Weight0.05 lb.
ConnectivityScrew Terminals
Nema RatingML-1P
Number Of Wires2-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7466
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE3.300x12.300x2.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585237312
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585237311
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
