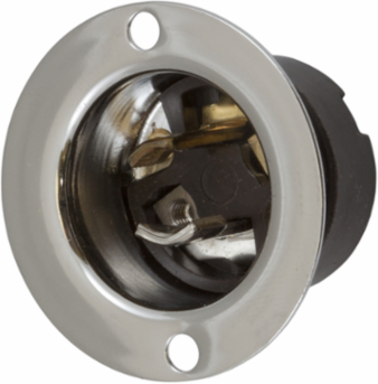

Hubbell Wiring Device-Kellems HBL7467 Twist-Lock Midget Flanged Inlet 15A 125V AC, 2-Pole, Polarized
- MPN: HBL7467
- UPC: 783585237329
- PPN: HBL-HBL7467
- UNSPSC: 39121406
CAD
$30.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® Midget Industrial Flanged Inlet, 15A 125V AC, 2-Pole 2-Wire Non Grounding, NEMA ML-1P, Screw Terminal Flange, Polarized
Features
- Stainless Steel mounting flange
- High heat resistant phenolic base
- Polarized, Metallic Flange
Specifications
Additional
- Amperage
- 15 A
- Phase
- Single Phase
- Number of Wires
- 2-Wire
- Temperature Rating
- Max 75C, Min -40C without impact
- Dimensions
- 1.63 in x 1.63 in x 0.94 in
- Mounting Type
- Flanged
- Base Material
- Phenolic
- Terminal Accommodation
- #18 AWG to #14 AWG solid or stranded copper wire
- Compliance
- UL Listed, CSA Certified
- IP Rating
- IP20
- Country of Origin
- US
Voltage125 V AC
Number of Poles2-Pole
GroundingNon Grounding
Dielectric Voltage Withstand2000 V minimum
MaterialNylon
Mounting Flange MaterialStainless Steel
Terminal TypeScrew Terminals
NEMA RatingML-1P
Flammability RatingHB or better per UL94/CSA 22.2 No.0.17
ColorBlack
