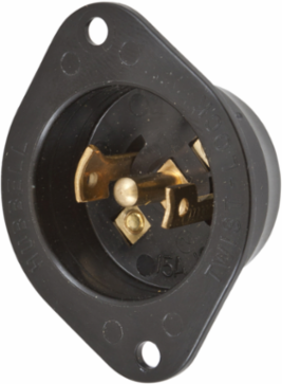

Hubbell Wiring Device-Kellems HBL7486N Midget Twist-Lock Flanged Inlet 15A 125/250V AC 3-Pole Black Nylon
Hubbell Wiring Device-Kellems HBL7486N Midget Twist-Lock Flanged Inlet 15A 125/250V AC 3-Pole Black Nylon
- MPN: HBL7486N
- UPC: 783585237459
- PPN: HBL-HBL7486N
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$44.23/ EA
Description
Locking Devices, Midget Twist-Lock®, Industrial, Flanged Inlet, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black Nylon Flange.
Features
- Fully Insulated nylon casing with integral flange
- Black color blends in with equipment
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 2.06 in x 1.63 in x 0.94 in
- Industry Standard(s)
- Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #14 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 125/250 V
- Voltage Rating Description
- 125/250 V
- Width
- 1.63 in
- Connectivity
- Screw Terminals
- Nema Rating
- ML-3P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7486N
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.500x12.300x2.700 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237459
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
Current / Amperage Rating15 A
Height0.94 in
Length2.06 in
Amperage Rating15 A
ColorBlack
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingML-3P
Number of Wires3-Wire
Size2.06 in x 1.63 in x 0.94 in
StandardListed to UL 498
TypeFlanged Inlet
Wire Size#18 AWG to #14 AWG
Weight0.05 lb.
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Display SizeMidget Locking
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG F-INLT,MIDGET,15A 125/250V,ML-3P,NM
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.75 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight4.550 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
