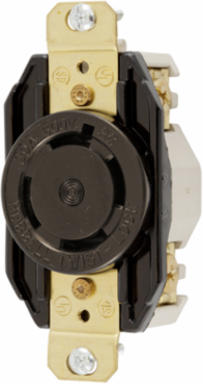

Hubbell Wiring Device-Kellems HBL2740 Industrial Twist-Lock Receptacle, 30A 3-Phase 600V AC, 3-Pole 4-Wire
- MPN: HBL2740
- UPC: 783585236179
- PPN: HBL-HBL2740
- UNSPSC: 39121406
CAD
$90.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, L17-30R, Screw Terminal, Black
Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phase
- Three Phase
- Number of Wires
- 4-Wire
- Operating Temperature Range
- -40°C to 75°C
- Type
- Single Flush Receptacle
- Dimensions
- 3.28 in x 1.7 in x 1.31 in
- Terminal Type
- Back and Side Wired Screw Terminals
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
- Country of Origin
- US
Voltage600 V AC
Number of Poles3-Pole
Wire Size#16 AWG to #8 AWG
Dielectric StrengthWithstands 2,000 V minimum
NEMA RatingL17-30R
Weight0.25 lb
MaterialNylon
Environmental ConditionsIndoor Dry Unless Protected
