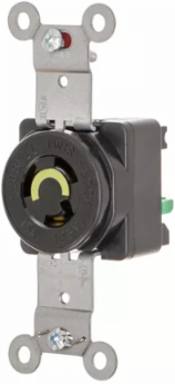

Hubbell Wiring Device-Kellems HBL4710ST EdgeConnect™ Twist-Lock® Receptacle, 15A 125V, 2-Pole, Black
- MPN: HBL4710ST
- UPC: 783585719634
- PPN: HBL-HBL4710ST
- UNSPSC: 39121406
CAD
$36.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, EdgeConnect™ Twist-Lock®, Industrial, Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screwless Terminal, Black
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Funnel shaped wire entry for ease of termination.
- EdgeConnect™ Technology, Screwless Termination
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.000 in
- Size
- Standard Sized Product
- Color
- Black
- Dielectric Strength
- Withstands 2,000V minimum
- Mounting
- Screw Mount
- Number of Poles
- 2
- Phase
- Single Phase
- Standard
- Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42;WR Rating
- Type
- Receptacle
- General Literature Asset 1 Display Text
- EdgeConnect™ Technology
- General Literature Asset 3 Display Text
- EdgeConnect™ Termination vs Standard Push Wire
- Nema Rating
- L5-15R
- Number Of Wires
- 3
- Class Code
- A08
- Harmonization Code
- 8536694020
- Sub Class Code
- A08A110
- Series
- EdgeConnect™ Twist-Lock® Series
- BOX SIZE
- 3.500x9.900x4.400 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585719634
- Case Weight
- 18.100 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating15 A
Industry Standard(s)Listed to UL 498;Fed.Spec. W-C-596;Certified to CSA C22.2 No.42;WR Rating
ApplicationIndustrial
ConnectionEdgeConnect™ Screwless Termination
Environmental ConditionsIP20 Suitability
NEMA RatingL5-15R
Number of Wires3
Special FeaturesEdgeConnect™ Technology, Screwless Termination
Temperature RatingMaximum Continuous 75°C, Minimum -40°C (w/o impact)
Voltage Rating15 VAC
General Literature Asset 2 Display TextEdgeConnect™ Technology FAQ
Mounting TypeScrew Mount
Number Of Poles2
StyleLocking Devices
Freight Class Code06168002
Image Actual Or RepresentativeA
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50
Pallet - GTIN - Package70783585719633
